  11. Rocker Switch, SPDT, 3 Connections
Shop All Rocker Switches
Power First

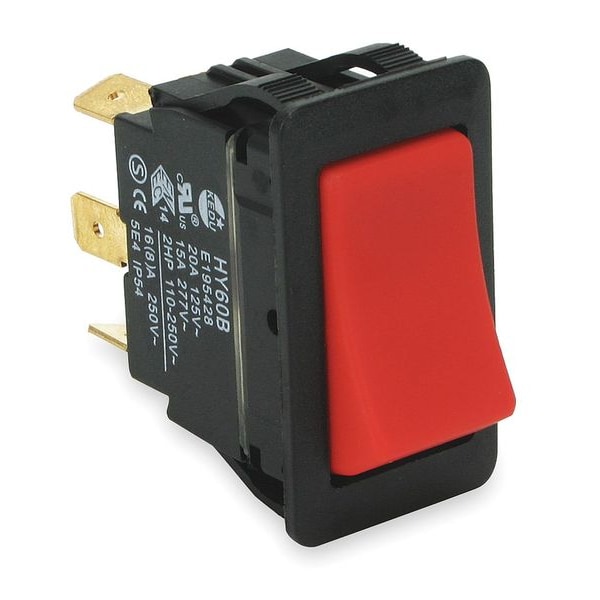

Rocker Switch, SPDT, 3 Connections

product price: $7.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Contact Form SPDT
  • Number of Connections 3
  • Switch Function On/Off/On
  • Terminals 0.250 in Quick Connect Tab
  • Mounting Hole 0.830 in x 1.450 in
See all product information

Product Information

Dimensions

Mounting Hole Length 1.48 in
Overall Height 0.27 in
Manufacturer Warranty Length 2 yr
Overall Depth 0.96 in
Overall Width 1.7 in
Mounting Hole Width 0.83 in

Details

Item Rocker Switch
Contact Form SPDT
Number of Connections 3
Switch Function On/Off/On
Terminals 0.250 in Quick Connect Tab
Mounting Hole 0.830 in x 1.450 in
AC Contact Rating 15 A @ 277 V, 20 A @ 125 V
HP 1 1/2 hp
Switch Color Red
Standards cRUus
Body Color Black
Operating Temp. Range 32 Degrees to 104 Degrees F
Product Type Rocker Switch
Operating Temperature - Maximum 104 Degrees F
Includes Lamp Module No Lamp Module Included
Operator Illumination Non-Illuminated
Lamp Module Type No Lamp Module Included
Switch Function Configuration On/Off/On
Terminal Connection Type Quick-Connect Tab Terminals
Includes Lens No Lens Included
Horsepower 1 1/2 hp
Number of Positions 3
Series HY60
Operating Temperature - Minimum 32 Degrees F
Lamp Type No Lamp Module Included

Description

Rocker Switch, Contact Form SPDT, Number of Connections 3, Switch Function On/Off/On, Terminals 0.250 in Quick Connect Tab, Mounting Hole 0.830 in x 1.450 in, AC Contact Rating 15 A @ 277 V, 20 A @ 125 V, DC Contact Rating Not Applicable, HP 1 1/2 hp, Body Color Black, Switch Color Red, Operating Temp. Range 32 Degrees to 104 Degrees F, Standards cRUus, IP Rating Not Applicable
