This item is Discontinued.

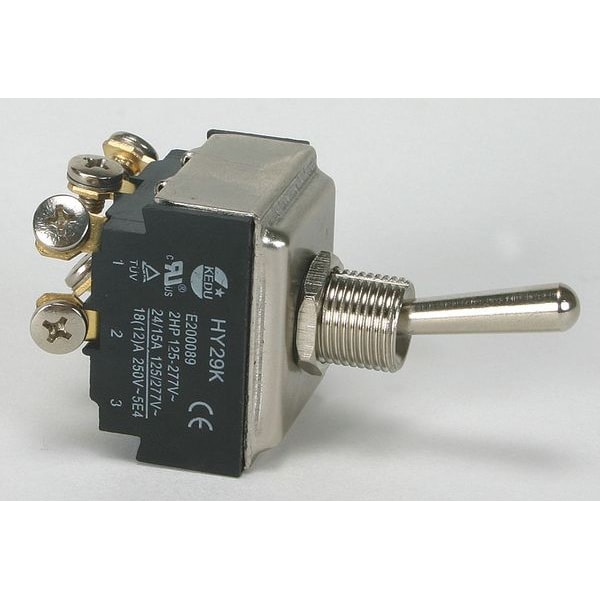

Power First Toggle Switch, 3PST, 15A at 277V, Screw 2VLT3

Toggle Switch, 3PST, 15A at 277V, Screw (Discontinued)

  • Mfr # 2VLT3
  • Zoro # G0654893
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2VLT3
Zoro #
G0654893
UPC #
190735593837
Country of Origin
China

Dimensions

Stem Length
0.47 in
Stem Dia. and Thread Size
0.500 in
Actuator Length
0.83 in
Overall Width
0.47 in
Stem Thread Size
M12 x 1
Manufacturer Warranty Length
2 yr
Overall Height
1.3 in
Overall Depth
0.47 in
Mounting Hole Diameter
0.5 in
Stem Diameter
0.47 in

Details

Item
Toggle Switch
Switch Function
On/Off
Terminals
Screw
AC Contact Rating
18 A @ 125 V, 15 A @ 277 V, 24 A @ 125 V
HP
2 hp
Mounting Hole
0.50 in dia
Standards
cRUus
Number of Connections
6
Operating Temp. Range
185 Degrees F
Contact Form
3PST
Actuator Style
Bat
IP Rating
IP40
Product Type
Toggle Switch
Series
HY29
Number of Positions
2
Base Type
Flat
Operator Illumination Style
Non-Illuminated
Terminal Connection Type
Screw Terminals
Number of Poles
3
Actuator Material
Metal
Operating Temperature - Maximum
185 Degrees F
Switch Function Configuration
On/Off
Horsepower
2 hp
Operating Temperature - Minimum
32 Degrees F
Metal Actuator Finish
Nickel

Description

Toggle Switch, Contact Form 3PST, Number of Connections 6, Switch Function On/Off, AC Contact Rating 18 A @ 125 V, 15 A @ 277 V, 24 A @ 125 V, HP 2 hp, Terminals Screw, Mounting Hole 0.50 in dia, DC Contact Rating Not Applicable, Actuator Style Bat, Actuator Length 0.83 in, Stem Length 0.47 in, Stem Dia. and Thread Size 0.500 in, Operating Temp. Range 185 Degrees F, Standards cRUus, Includes Not Applicable
