Shop POWERDRIVE

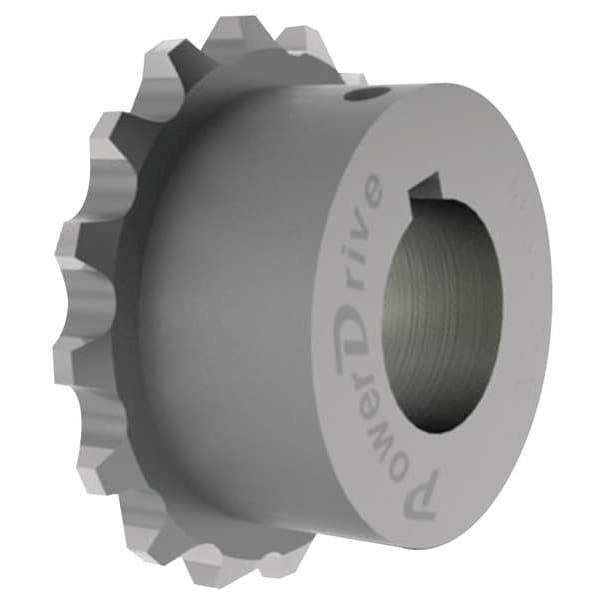

Chain Coupling Sprocket, Round Keyed, 1 in Bore Dia., 16 # of Teeth

  • Mfr # C4016X1

  • Zoro # G3309275

product price:
$
31.99
/ea

Key Features

Material
Steel
Number of Teeth
16
Bore Type
Round Keyed
Bore Dia. (In.)
1 in
Chain Number
40
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
C4016X1
Zoro #
G3309275
UPC #
637363283735
Country of Origin
India
Item
Chain Coupling Sprocket
Material
Steel
Number of Teeth
16
Bore Type
Round Keyed
Chain Number
40
Max. Number of Teeth
16
Max. Parallel Misalignment (In.)
0.005 in
HP Rating @ 100 RPM
0.9 hp
For Use With
AL40, AL60
End Float Tolerance (In.)
0.06 in
Setscrew
Yes
Pitch
40
Temp. Range (F)
-25 Degrees to 150 Degrees
Keyway
0.250 x 0.125
Angular Misalignment Tolerance
1/2 Degrees (20T-24T), 3 Degrees (10T-19T)
Weight
2.8 lb
Maximum Operating Temperature
150 Degrees F
Horsepower @ 100 RPM
4.14 hp
Axial Motion
0.06 in
For Chain Pitch
1/2 in
Hub Material
Steel
Maximum Angular Misalignment
1 Degrees
Parallel Misalignment
0.005 in
For Cover Part Number
AL40
Minimum Operating Temperature
-25 Degrees F
System of Measurement
Inch
Horsepower @ Maximum RPM
16.9 hp @ 4,000 RPM

Description

Chain Coupling Sprocket, Chain Number 40, Bore Diameter 1 in, Bore Type Round Keyed, Horsepower @ 100 RPM 4.14 hp, Outside Diameter with Chain 3 in, Hub Diameter 1 3/8 in, For Chain Pitch 1/2 in, Keyway Depth 1/8 in, Keyway Width 1/4 in, Maximum Angular Misalignment 1 Degrees , Number of Teeth 16, Parallel Misalignment 0.005 in, System of Measurement Inch, Axial Motion 0.06 in, For Cover Part Number AL40, Horsepower @ Maximum RPM 16.9 hp @ 4,000 RPM, Maximum Operating Temperature 150 Degrees F
