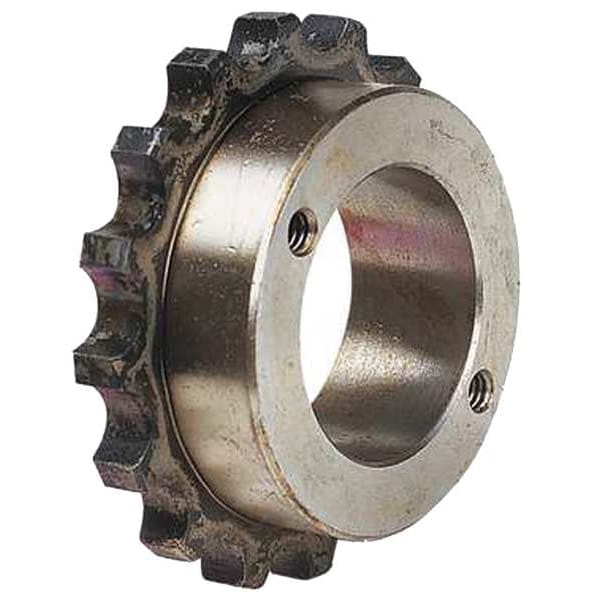

Chain Coupling Sprocket, Split Taper Bushing, 1/2 - 2-7/16 Bore Dia., 20 # of Teeth

  • Mfr # C6020XB

  • Zoro # G2173446

product price:  $87.39
/ea

Key Features

Material
Steel
Number of Teeth
20
Bore Type
Split Taper Bushing
Bore Dia. (In.)
1/2 - 2-7/16
Chain Number
60
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C6020XB
Zoro #
G2173446
UPC #
637363283803
Country of Origin
India

Dimensions

Bore Dia. (In.)
1/2 - 2-7/16
Length through Bore
2 3/16 in
Width (In.)
2.0625 in
Outside Dia. (In.)
5.5 in
Outside Diameter with Chain
5.63 in
Coupling Overall Length
4 7/8 in
For Bushing Size
B
Outside Diameter with Cover
6.38 in
Bore Diameter
2 7/16 in
Hub Diameter
3 7/8 in

Details

Item
Chain Coupling Sprocket
Material
Steel
Number of Teeth
20
Bore Type
Split Taper Bushing
Chain Number
60
For Use With
6AGR1, 6AGT1
Temp. Range (F)
-25 Degrees to 150 Degrees
End Float Tolerance (In.)
0.06 in
Pitch
60
Angular Misalignment Tolerance
1/2 Degrees (20T-24T), 10 Degrees (10T-19T)
Max. Number of Teeth
20
Bushing Required
B
HP Rating @ 100 RPM
3.86 hp
Max. Parallel Misalignment (In.)
0.005 in
For Chain Pitch
3/4 in
Maximum Operating Temperature
150 Degrees F
System of Measurement
Inch
Minimum Operating Temperature
-25 Degrees F
For Cover Part Number
AL60
Axial Motion
0.06 in
Horsepower @ 100 RPM
13.48 hp
Parallel Misalignment
0.005 in
Horsepower @ Maximum RPM
46 hp @2,000 hp
Hub Material
Steel
Maximum Angular Misalignment
1 Degrees
Bushing Bore Range
1/2 in to 2 7/16 in

Description

Chain Coupling Sprocket, Chain Number 60, Bore Diameter 2 7/16 in, Bore Type Split Taper Bushing, Horsepower @ 100 RPM 13.48 hp, Outside Diameter with Chain 5.63 in, Hub Diameter 3 7/8 in, For Bushing Size B, For Chain Pitch 3/4 in, Keyway Depth Not Applicable, Keyway Width Not Applicable, Maximum Angular Misalignment 1 Degrees , Number of Teeth 20, Parallel Misalignment 0.005 in, System of Measurement Inch, Axial Motion 0.06 in, For Cover Part Number AL60
