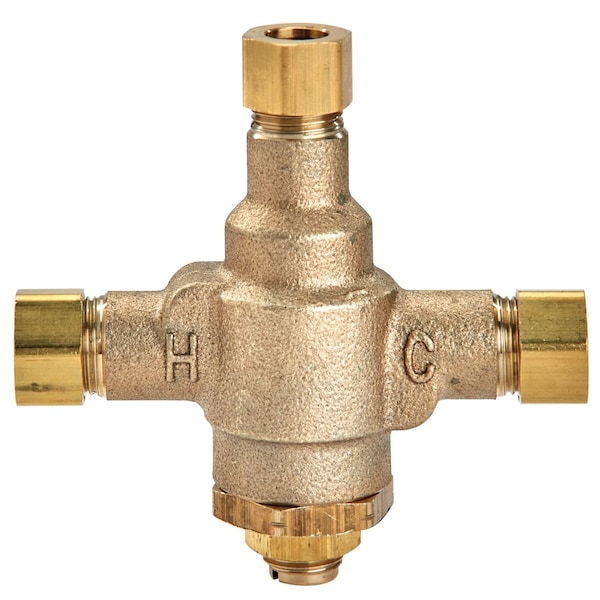

Mixing Valve
Mfr # LFE480-10Q
Zoro # G311378468
product price:Â
$
197.99
/ea
Free Shipping & Returns
Key Features
Overall Length
3 11/16 in
Body Material
Silicon Alloy
Overall Height
3 3/16 in
Standards
ASSE 1070, NSF/ANSI/CAN 61
Inlet Temperature - Minimum Hot
120 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LFE480-10Q
- Zoro #
- G311378468
- UPC #
- 686408026608
- Country of Origin
- United States
Dimensions
- Overall Length
- 3 11/16 in
- Overall Height
- 3 3/16 in
- Inlet Connection Size - Hot
- 3/8 in
- Outlet Connection Size
- 3/8 in
- Inlet Connection Size - Cold
- 3/8 in
- Wire Rope Length
- 3 11/16 in
- Length
- 3 11/16 in
Details
- Item
- Mixing Valve
- Body Material
- Silicon Alloy
- Standards
- ASSE 1070, NSF/ANSI/CAN 61
- Inlet Temperature - Minimum Hot
- 120 Degrees F
- Inlet Temperature - Minimum Cold
- 40 Degrees F
- Inlet Temperature - Maximum Cold
- 80 Degrees F
- For Media
- Hot Water
- Operating Pressure - Maximum
- 125 psi
- Includes Temperature Gauge
- Temperature Gauge Not Included
- Inlet Connection Type - Cold
- Compression
- Inlet Temperature - Maximum Hot
- 180 Degrees F
- Outlet Connection Type
- Compression
- Operating Temperature - Maximum Outlet
- 120 Degrees F
- Inlet Connection Type - Hot
- Compression
- Operating Temperature - Minimum Outlet
- 80 Degrees F
Description
Mixing Valve
