Precision Brand

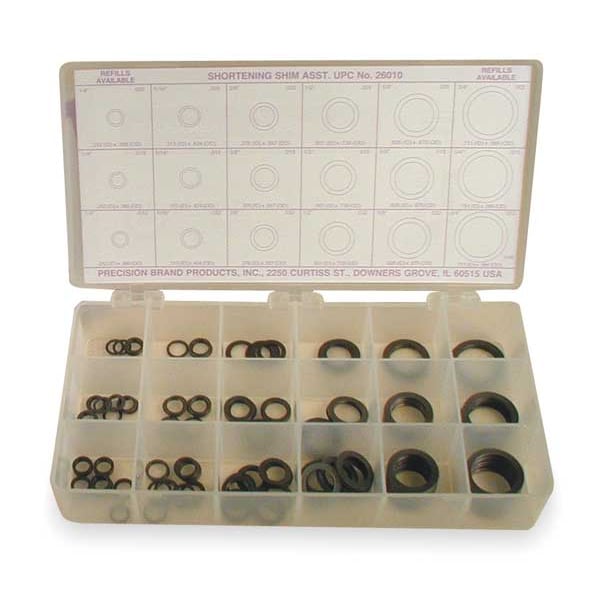

Shortening Shim Assortment, Pk270

product price: $118.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Shim Material Steel
  • Grade Not Rated
  • Thickness Range (In.) 0.005 to 0.032
  • Number of Pieces 270
  • Thickness Tolerance +/-0.005 mm, +/-0.010 mm, +/-0.025 mm
See all product information

Product Information

Dimensions

Inside Dia. 0.252 - 0.751 in
Outside Dia. 0.366 - 0.995 in
Inside Diameter Tolerance +0.005/-0.000 in
Outside Diameter Tolerance +0.000/-0.005 in
Outside Diameter 0.366 in, 0.424 in, 0.557 in, 0.738 in, 0.87 in, 0.995 in
Number of Sizes 18
Inside Diameter 0.252 in, 0.313 in, 0.376 in, 0.501 in, 0.626 in, 0.751 in

Details

Shim Material Steel
Grade Not Rated
Thickness Range (In.) 0.005 to 0.032
Number of Pieces 270
Thickness Tolerance +/-0.005 mm, +/-0.010 mm, +/-0.025 mm
Includes (15) 0.252x0.366x0.005 in, (15) 0.252x0.366x0.015 in, (15) 0.252x0.366x0.032 in, (15) 0.313x0.424x0.005 in, (15) 0.313x0.424x0.015 in, (15) 0.313x0.424x0.032 in, (15) 0.376x0.557x0.005 in, (15) 0.376x0.557x0.015 in, (15) 0.376x0.557x0.032 in, (15) 0.501x0.738x0.005 in, (15) 0.501x0.738x0.015 in, (15) 0.501x0.738x0.032 in, (15) 0.626x0.870x0.005 in, (15) 0.626x0.870x0.015 in, (15) 0.626x0.870x0.032 in, (15) 0.751x0.995x0.005 in, (15) 0.751x0.995x0.015 in, (15) 0.751x0.995x0.032 in
Item Shortening Shim Assortment
Round Shim Type Shortening Shim
Application Stripper Bolt/Shoulder Screw Adjustments
Material Steel
Thickness 0.005 in, 0.015 in, 0.032 in
Rockwell Hardness C 48-51
Temper Full Hard
Made in North America Yes
Finish Plain
Product Type Arbor Shim Assortment
Material Quality Standards AISI-1095, AMS-5122B, MIL-S-4604, MIL-S-7947, SAE-1095
System of Measurement Inch
Material Grade/Class 1095
Manufacturer Location Made in USA*

Description

Shortening Shim Assortment, System of Measurement Inch, Inside Diameter 0.252 in, 0.313 in, 0.376 in, 0.501 in, 0.626 in, 0.751 in, Product Type Arbor Shim Assortment, Outside Diameter 0.366 in, 0.424 in, 0.557 in, 0.738 in, 0.87 in, 0.995 in, Inside Diameter Tolerance +0.005/-0.000 in, Outside Diameter Tolerance +0.000/-0.005 in, Thickness 0.005 in, 0.015 in, 0.032 in, Thickness Tolerance +/-0.005 mm, +/-0.010 mm, +/-0.025 mm, Keyway Width Not Applicable, Keyway Depth Not Applicable
