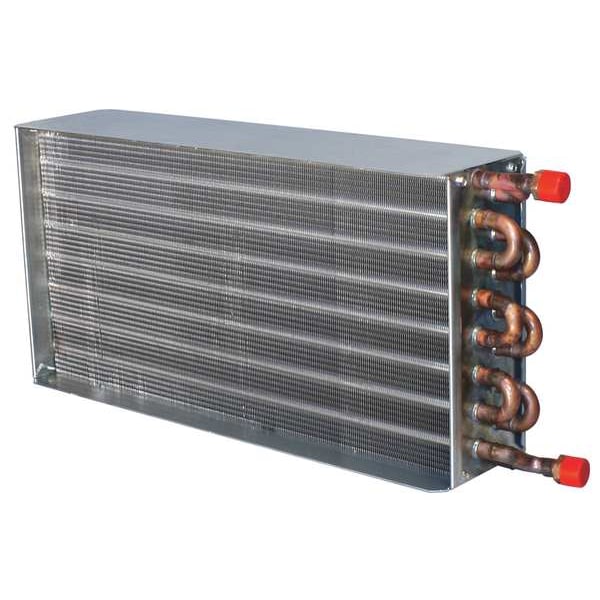

Heat Coil, 600cfm, 3.8gpm, 6x12-1/8x12-3/8"

PRECISION COILS |Zoro #: G0806337|Mfr #: SP1021212N

$360.50 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0806337 Mfr #: SP1021212N
Casing Material: 16 ga. Galvanized SteelEntering Dry Bulb: 55 Degrees F
Coils Per Bank: 1Connection Type: MPT Copper
Tube Outside Dia.: 5/8"Fin Type: Sine
Fin Thickness: 0.006"Tube Wall Thickness: 0.2"
Fluid Type: Hot WaterTube Material: Copper
Supply and Return Connection: 3/4"Fin Material: Aluminum
Item: Heating CoilFins per Inch: 10
Flow Capacity: 3.8 gpmAir Flow: 600 cfm
Number of Rows: 2Number of Feeds: 1
Face Area: 1.00 sq. ft.Casing Type: Slip and Drive
Air Pressure Drop: 0.2 psiCasing Length: 12-3/8"
Leaving Dry Bulb: 112.1 Degrees FCasing Height: 12-1/8"
Fin Length: 12"Casing Depth: 6"
Fin Height: 12"Total Capacity: 37.1 mbh
Country of Origin (subject to change): United States

Product Description

Heating Coil, Fluid Type Hot Water, Air Flow 600 cfm, Flow Capacity 3.8 gpm, Casing Length 12-3/8 In., Casing Depth 6 In., Casing Height 12-1/8 In., Face Area 1.00 sq. ft., Supply and Return Connection 3/4 In., Connection Type MPT Copper, Number of Feeds 1, Casing Type Slip and Drive, Casing Material 16 ga. Galvanized Steel, Number of Rows 2, Coils Per Bank 1, Fin Type Sine, Fin Material Aluminum, Fin Length 12 In., Fin Thickness 0.006 In., Fin Height 12 In., Fins per Inch 10
