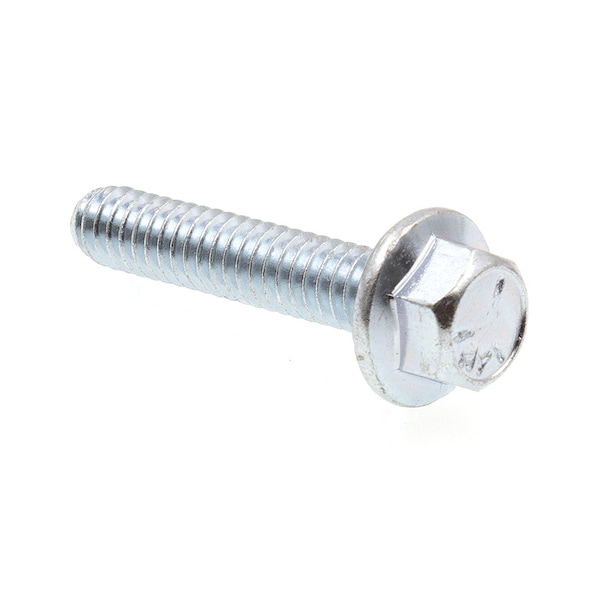

Serrated Flange Bolts 1/4in-20 X 1-1/4in Zinc Plated Case Hard Steel 25PK

  • Mfr # 9090684

  • Zoro # G500934444

product price:
$
14.55
/pk 25, $0.58/ea

Key Features

Hex Drive
System of Measurement
Inch
Flange Type
Serrated
Head Width
3/8 in
Material
Case Hardened Steel
Finish
Zinc Plated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9090684
Zoro #
G500934444
UPC #
49793137524
Country of Origin
China

Dimensions

Thread Size
1/4"-20
Fastener Length
1-1/4 in
Head Width
3/8 in

Details

System of Measurement
Inch
Flange Type
Serrated
Drive
Hex
Material
Case Hardened Steel
Finish
Zinc Plated
Thread Style
Fully Threaded
Thread Direction
Right Hand
Standards
ASME B18.2.1, ASME B18.6.3, & ASME B1.1
Item
Flange Bolt
Head Style
Flange Hex

Description

Flange bolts feature a built in washer under the bolt head that helps to distribute the clamping load over a larger area. This "one-piece" design eliminates the need of a separate washer under the bolt head and is preferable for some applications as it can be more efficient and easier to use. A washer is still needed on the nut side unless using a flange nut. The serrations under the flange bite into the surface and help to resist loosening due to vibration.
  • Size: 1/4 inch-20 X 1-1/4 inch
  • Hex bolt with a serrated circular flange under the head
  • Flange eliminates need for separate washer
  • Serrations bite into surface and can help to prevent loosening
  • Designed for use with a nut (not included) or a threaded hole of the same diameter and thread size
  • Thread Type: Coarse, Thread Class: UNC-2A, Point Style: Blunt
  • Specification(s) Met: ASME B18.2.1, ASME B18.6.3, & ASME B1.1
