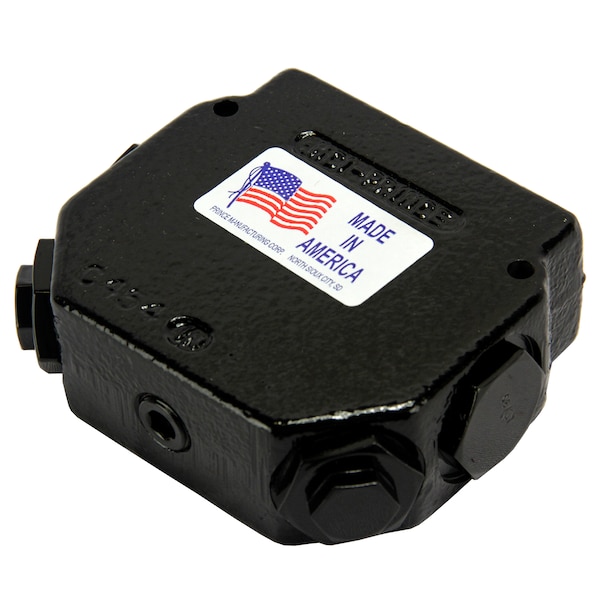

Flow Divider Valve 1/2" Port, 8-16 Gpm Inlet Flow Range, Gloss Black (Discontinued)
- Mfr # RD-350-AB-16
- Zoro # G2515890
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
RD-350-AB-16
Zoro #
G2515890
UPC #
615986037836
Country of Origin
United States
Dimensions
Port Size
1/2 in. NPT
Details
Max. Pressure (PSI)
3000 PSI
Weight
7 lbs
Type
Pressure Compensated Proportional Flow Divider
Max. Flow - Hydraulic Valves
8-16 Flow Range
Description
The PRINCE model RD-300 valve is a pressure compensated proportional flow divider. The standard models of this valve will take one inlet flow and split it into two nearly equal outlet flows. The valve is also available with special ratio spools which will split the flow into two flows proportional to the ratio specified. Because the valve is pressure compensated the valve will maintain the divider ratio with quite different loads on the outlet ports as long as the inlet flow is within the range given in the chart below. The valve free has reverse checks. This allows the reverse flow of oil from the outlet ports to the inlet port. The reverse flow is not pressure compensated.
