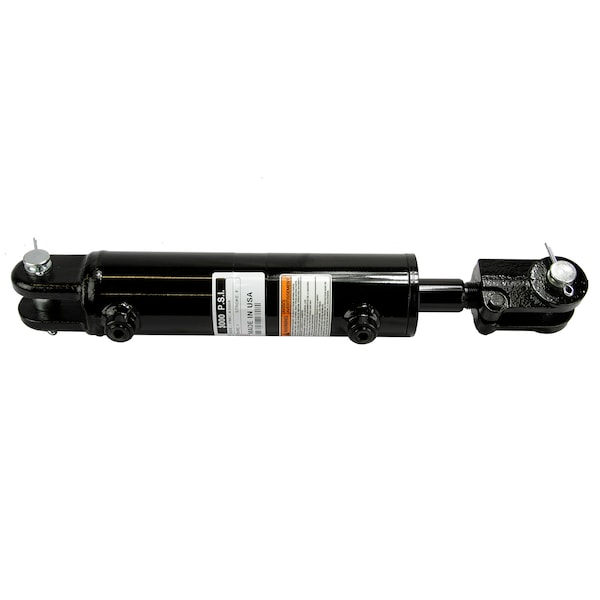

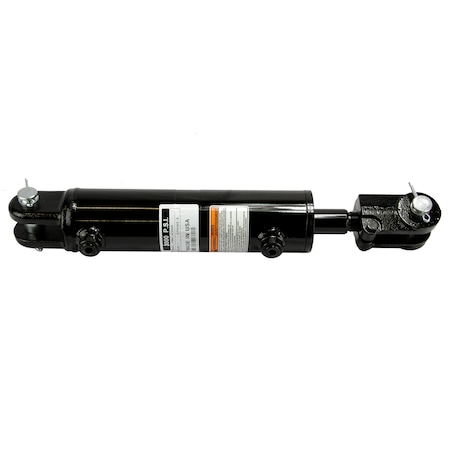

Sword Welded NPT Hydraulic Cylinder: 1.5 Bore x 8 Stroke - No. Pmc-19408 (Discontinued)
- Mfr # Prince Sword Welded Cylinders, NPT Ports
- Zoro # G2401949
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
Prince Sword Welded Cylinders, NPT Ports
Zoro #
G2401949
UPC #
-
Country of Origin
United States
Dimensions
Bore Dia.
1.5 in
Stroke Length
8 in
Port Size
3/8 NPTF
Pin Diameter
.75 in
Details
Item
Hydraulic Cylinder
Weight
13 lbs
Extended
28.25 in
Retracted
20.25 in
Description
Heavy-duty welded construction * Piston: ductile iron * Tube: skived / honed * Gland: ductile iron * Piston rod: chromed, ground and polished * End fittings: ductile iron female clevises * Seals: urethane u-cup and urethane wiper in gland, crown seal on piston * Square ring gland retainer provides positive lock * Pins, clips and cotter pins included * Paint: Black
