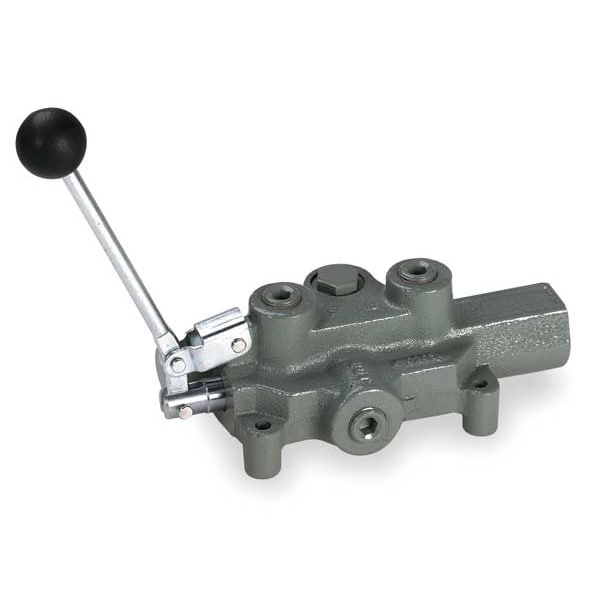

Valve, 4 Way, 3/4 In NPT

  • Zoro #: G3207434
  • Mfr #: RD512CA5A4B1
$151.99
  • Item: Hydraulic Directional Valve
  • Adjustable PSI Range: 1500 to 3000
  • Max. Pressure - Hydraulic Valves: 3,000 psi
See full product details
This item ships free.

Prince #RD512CA5A4B1 Specifications

  • Zoro #: G3207434
  • Mfr #: RD512CA5A4B1
Item: Hydraulic Directional Valve Adjustable PSI Range: 1500 to 3000
Max. Pressure - Hydraulic Valves: 3,000 psi Length (In.): 10 in
Inlet Port Size - Hydraulic Valves: 3/4 in NPT Relief Valve Range (PSI): 1500 to 3000
Work Port Size - Hydraulic Valves: 1/2 in NPT Spool Action: Spring Center To Neutral
NPT Port (In.): 1/2 For Use With: Double Acting Cylinders
Height (In.): 3 1/4 in Max. Pressure (PSI): 3000
Factory Preset Relief Valve Setting (PSI): 2000 psi @ 10 GPM Number of Spools - Hydraulic Valves: 1
Width (In.): 5 1/4 in Valve Type - Hydraulic Valves: Hydraulic Directional Control Valve
Inlet/Outlet NPT (In.): 3/4 Spools: 1
Max. Flow - Hydraulic Valves: 30.0 gpm Outlet Port Size - Hydraulic Valves: 3/4 in NPT
Center: Tandem Ways: 4
Valve Ways and Positions: 4-Way/3-Position Type: Monoblock
Flow Capacity (GPM): 30 Overall Height:
Port Size Outlet (In.): Body Material:
Size: Reverse Free Flow:
Position: Overall Length (In.):
Cord: Overall Width:
Function: Overall Width (In.):
Item - Hydraulic Selector Valves: Gears:
Application: Adjustable Relief Valve:
Body Material - Hydraulic Valves: Displacement (cc/rev):
Valve Type: Max. Outer Pressure (PSI):
Valve Actuation Type - Hydraulic Valves: RPM Range:
Flow Range (GPM): Port Size - Hydraulic Valves:
Overall Length: Max. RPM:
Capacity (GPM): Way:
Port Size Inlet (In.): Center Position - Hydraulic Valves:
Port (In.): Flow Rate (GPM):
Operating Pressure (PSI): Overall Height (In.):
Height: Color:
Outside Diameter: Features:
Weight: Includes:
Capacity: Standards:
Voltage: Material:
Choking Hazard: Depth:
Width: Thickness:
Finish: Length:
Inside Diameter: Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Hydraulic Directional Valve, 1 Number of Spools - Hydraulic Valves, Valve Ways and Positions 4-Way/3-Position, Spool Action Spring Center To Neutral, Max. Flow - Hydraulic Valves 30.0 gpm, Inlet Port Size - Hydraulic Valves 3/4 in NPT, Outlet Port Size - Hydraulic Valves 3/4 in NPT, Max. Pressure - Hydraulic Valves 3,000 psi, Tandem Center, Work Port Size - Hydraulic Valves 1/2 in NPT, Relief Valve Range (PSI) 1500 to 3000, Factory Preset Relief Valve Setting (PSI) 2000 psi @ 10 GPM
