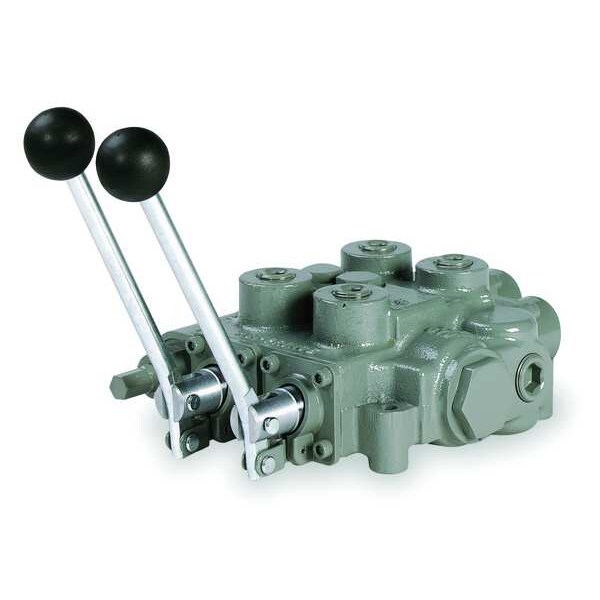

Valve, 4 Way, 3/4 In NPT

  • Zoro #: G1824471
  • Mfr #: RD522GCGA5A4B1
$259.99
  • Max. Pressure (PSI): 3000
  • Item: Hydraulic Directional Valve
  • Max. Pressure - Hydraulic Valves: 3,000 psi
See full product details
This item ships free.

Prince #RD522GCGA5A4B1 Specifications

  • Zoro #: G1824471
  • Mfr #: RD522GCGA5A4B1
Max. Pressure (PSI): 3000 Item: Hydraulic Directional Valve
Max. Pressure - Hydraulic Valves: 3,000 psi Ways: 4
Center: Tandem Spool Action: No. 1: Spring Center To Neutral and 4th Position Detent. No. 2: Spring Center To Neutral
Length (In.): 10 15/16 in Factory Preset Relief Valve Setting (PSI): 2000 psi @ 10 GPM
Valve Type - Hydraulic Valves: Hydraulic Directional Control Valve Height (In.): 3 1/4 in
Max. Flow - Hydraulic Valves: 25.0 gpm Width (In.): 7 5/8 in
Relief Valve Range (PSI): 1500 to 3000 Work Port Size - Hydraulic Valves: 1/2 in NPT
For Use With: Double Acting Cylinders Type: Monoblock
Spools: 2 Flow Capacity (GPM): 25
Outlet Port Size - Hydraulic Valves: 3/4 in NPT Number of Spools - Hydraulic Valves: 2
Inlet Port Size - Hydraulic Valves: 3/4 in NPT Adjustable PSI Range: 1500 to 3000
Valve Ways and Positions: 4-Way/3-Position Inlet/Outlet NPT (In.): 3/4
NPT Port (In.): 1/2 Max. Outer Pressure (PSI):
Gears: Capacity (GPM):
Port (In.): Max. RPM:
Reverse Free Flow: Item - Hydraulic Selector Valves:
Displacement (cc/rev): Flow Rate (GPM):
Port Size Outlet (In.): Overall Height:
Way: Body Material - Hydraulic Valves:
Body Material: Port Size - Hydraulic Valves:
Application: Overall Height (In.):
Overall Length: Position:
Overall Length (In.): Function:
Valve Type: Operating Pressure (PSI):
Cord: Overall Width (In.):
Valve Actuation Type - Hydraulic Valves: RPM Range:
Center Position - Hydraulic Valves: Adjustable Relief Valve:
Port Size Inlet (In.): Overall Width:
Size: Flow Range (GPM):
Capacity: Depth:
Height: Material:
Inside Diameter: Choking Hazard:
Finish: Includes:
Outside Diameter: Width:
Standards: Thickness:
Voltage: Features:
Weight: Color:
Length: Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Hydraulic Directional Valve, 2 Number of Spools - Hydraulic Valves, Valve Ways and Positions 4-Way/3-Position, Spool Action No. 1: Spring Center To Neutral and 4th Position Detent. No. 2: Spring Center To Neutral, Max. Flow - Hydraulic Valves 25.0 gpm, Inlet Port Size - Hydraulic Valves 3/4 in NPT, Outlet Port Size - Hydraulic Valves 3/4 in NPT, Max. Pressure - Hydraulic Valves 3,000 psi, Tandem Center, Work Port Size - Hydraulic Valves 1/2 in NPT, Relief Valve Range (PSI) 1500 to 3000
