  9. NO Vertical Float Switch 115VAC

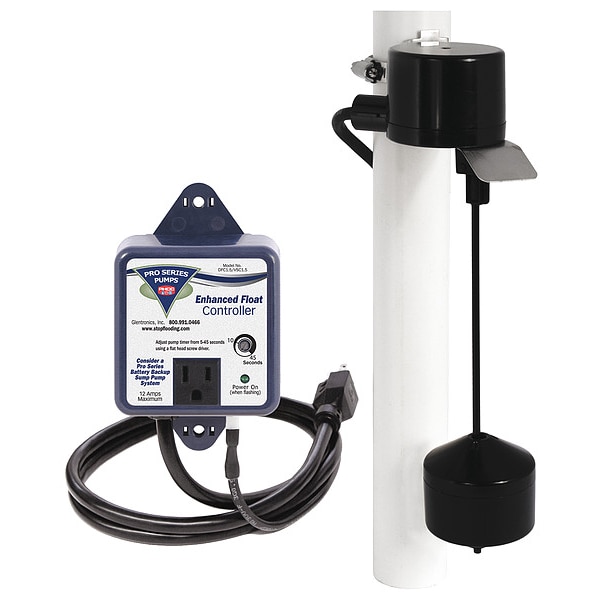

Pro Series Pumps NO Vertical Float Switch 115VAC VSC1.5 - main

NO Vertical Float Switch 115VAC

  • Mfr # VSC1.5

  • Zoro # G4241496

product price: $131.99
/ea
Free Shipping & Returns

Key Features

Switch Type
Vertical
Voltage
115VAC
Amps
12 A
Width
4-1/2"
Compliance
UL
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VSC1.5
Zoro #
G4241496
UPC #
717301122576
Country of Origin
China

Dimensions

Width
4-1/2"
Float Switch Cord Length
2 ft.
Height
12"
Overall Length (In.)
4-1/2
Tether Length Min.-Max.
12"
Float Dia. (In.)
4-1/2
Length
4-1/2"
Float Length (In.)
12
Float Dia.
4 1/2 in
Float Length
12 in
Cord Length
10 ft
Overall Height
12 in
Overall Width
2.75 in
Overall Depth
2.75 in
Float Switch Length
1 ft

Details

Switch Type
Vertical
Voltage
115VAC
Item
Float Switch
Amps
12 A
Compliance
UL
Float Switch Type
Solid State
Wire Gauge
18
Float Switch On Point
Adjustable
Float Switch Off Point
Adjustable
Float Material
Polypropylene
Control Range
Adjustable
Agency Compliance
UL
Teather/Solid State
Solid State
Operation
Automatic
Turns Off At
Various Levels
Type
Sump or Sewage
For Use With
Sumps
Connection
Plug
Body Material
ABS
Mounting Bracket Material
Anodized Aluminum
Electrical Connection - Pumps
Plug
Float Switch Float Material
Polypropylene
Series
VSC1.5
Electrical Connection (Pumps)
Plug
Max. Liquid Temp.
104 Degrees F
Mounts
Hose Clamp
Includes
Mechanical Float Switches
Float Switch Contact Form
Normally Open
Wire Lead
SJOW
Stem Material
Polypropylene
Phase
Single
Rated Voltage
115V AC
Switch Actuation
Vertical Float
Electrical Connection
Piggyback
Off Point
Adjustable
Contact Default
Normally Open
On Point
Adjustable
Product Type
Pump Controller
Number of Switches Included
2
NEMA Enclosure Rating
No Enclosure
Includes Status Indicator Lights
Status Indicator Lights Included
Includes HOA Switch
No HOA Switch Included
Locking Style
Non-Lockable
Enclosure Material
Thermoplastic
Number of Pumps Controlled
1
Location
Indoor
Includes Data Logging
No Data Logging Included
Intrinsic Safety
Intrinsically Safe
Dosing Schedule
Demand Dose
Includes Reversing
Non-Reversing
Current
12 A
For Maximum Horsepower
1 hp

Description

Float Switch, Includes Mechanical Float Switches
