Shop IFM

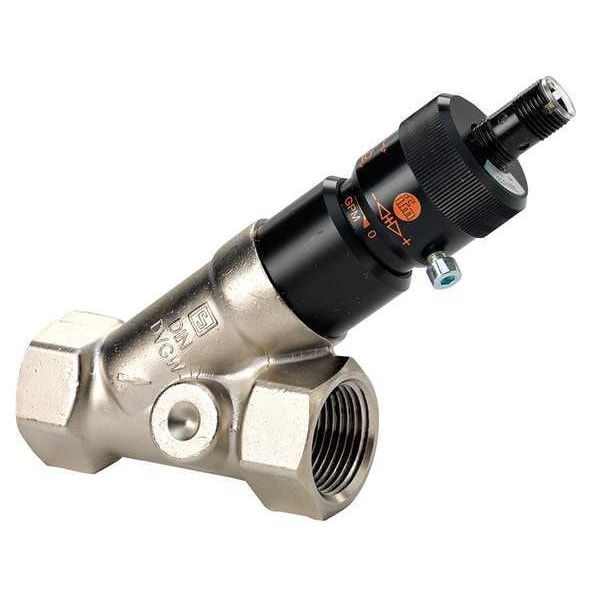

1 NPT DC PNP Flow Switch 24VDC 26.4 gpm

  • Mfr # SBN346

  • Zoro # G6815103

product price:
$
417.99
/ea
Free Shipping & Returns

Key Features

Connection Size (In.)
1 NPT
Switch Type
PNP
Voltage
24V DC
Max. Pressure
363 psi
Max. Flow GPM
26.4 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SBN346
Zoro #
G6815103
UPC #
-
Country of Origin
Germany
Switch Type
PNP
Voltage
24V DC
Max. Pressure
363 psi
Max. Flow GPM
26.4 gpm
Item
Flow Switch
Max. Ambient Temp. (F)
140 Degrees F
Max. Pressure (PSI)
363 psi
Material of Construction
Nickel Plated Brass
Min. Ambient Temp. (F)
32 Degrees
Body Material
Nickel Plated Brass
Wetted Materials
304S15 Stainless Steel
Recommended Filtration (microns)
50 micron
Min. Flow Rate (GPM)
1.32 gpm
Max. Fluid Temp. (F)
185 Degrees F
Flow Rate
26.4
Contact Rating
10mA
Switch Enclosure
IP67
Min. Fluid Temp. (F)
32 Degrees F
Standards
DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 61000-6-3
Media Temperature - Maximum
185 Degrees F
Wetted Material
301 Stainless Steel, 304 Stainless Steel, Brass, PBT, Polyolefin, Polyphenylene, Polypropylene, Viton
Ambient Temperature - Minimum
32 Degrees F
Connection Type
NPT
Filter Rating - Maximum
200 micron
Switch Position
Normally Open
Set Point Configuration
Adjustable
Ambient Temperature - Maximum
140 Degrees F
Housing Material
Aluminum
Flow Rate - Maximum
1.32 gpm
Flow Rate - Minimum
1.32 gpm
Media Temperature - Minimum
32 Degrees F
Contact Rating (DC)
100 mA
Nameplate Voltage
10-30 V DC
Flow Switch Type
Piston

Description

Flow Switch, Ambient Temperature - Maximum 140 Degrees F, Ambient Temperature - Minimum 32 Degrees F, Connection Size 1 in, Connection Type NPT, Contact Rating (AC) Not Applicable, Contact Rating (DC) 100 mA, Filter Rating - Maximum 200 micron, Flow Rate - Maximum 1.32 gpm, Flow Rate - Minimum 1.32 gpm, Flow Switch Type Piston, For Pipe Size Not Applicable, Frequency Not Applicable, Hazardous Location Specification Not Applicable, Housing Material Aluminum
