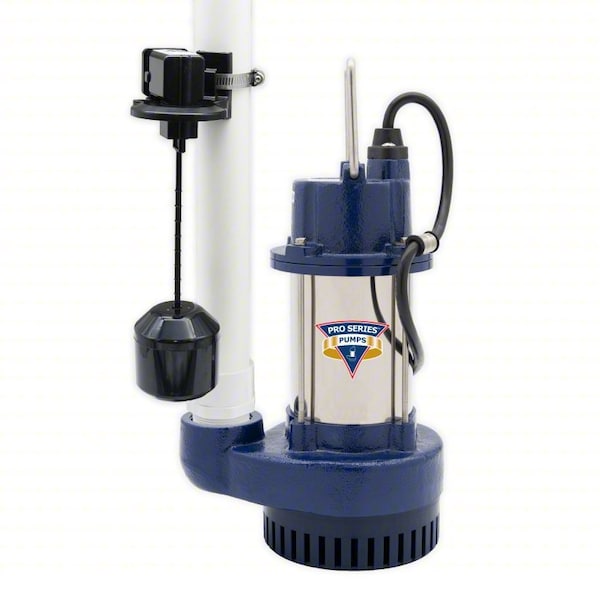

SubmersibleSumpPump, 10ft, 13in, 115VAC

  • Mfr # S3033-VS

  • Zoro # G415544462


product price: $386.99
/ea
Free Shipping & Returns

Key Features

Cord Length
10 ft
Impeller Material
Polycarbonate
Phase
Single
NEC Cord Designation
SJTW
Manufacturers Warranty Length
5 yr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S3033-VS
Zoro #
G415544462
UPC #
717301122705
Country of Origin
Taiwan, Province of China

Dimensions

Cord Length
10 ft
Manufacturers Warranty Length
5 yr
Solids Diameter - Maximum
1/4 in
Body Diameter
7 7/8 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
1 1/2 in
Overall Height
13 in
Width at Widest Point
4 1/4 in

Details

Impeller Material
Polycarbonate
Phase
Single
Item
Submersible Sump Pump
NEC Cord Designation
SJTW
Application
Dewatering
Base Material
Cast Iron
Gauge/Conductor
16/3
Thermal Protection
Auto
Discharge Gender
Female
Feet of Head - Maximum
30 ft
Standards
CSA
Duty Cycle
Continuous
Flow Rate @ 10 ft of Head
50 gpm
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber
Includes Alarm
No Alarm Included
Requires Control Panel
No Control Panel Required
For Industry
Commercial, Residential
Discharge Standard
NPT
Hazardous Location Class
Not Rated
Impeller Design
Open
For Media Type
Clear Water
Motor Housing Material
Stainless Steel
Operation
Automatic
Installation
Submersible
Series
Pro Series
Shaft Seal Type
Double Mechanical
Rotation Speed - Maximum
3,450 RPM
Flow Rate @ 30 ft of Head
0 gpm
Current
4.00 A
Volute Material
Cast Iron
Liquid Temperature - Maximum
104 Degrees F
Switch Electrical Connection
Piggyback
Switch Actuation
Vertical Float
Rated Voltage
115V AC
Horsepower
1/3 hp
Power Source
Corded Electric
Frequency
60 Hz

Description

Submersible Sump Pump, Rated Voltage 115V AC, Switch Actuation Vertical Float, Switch Electrical Connection Piggyback, Off Point Not Applicable, On Point Not Applicable, Impeller Material Polycarbonate, Overall Height 13 in, Thermal Protection Auto, Width at Widest Point 4 1/4 in, Duty Cycle Continuous, Cord Length 10 ft, NEC Cord Designation SJTW, Gauge/Conductor 16/3, Manufacturers Warranty Length 5 yr
