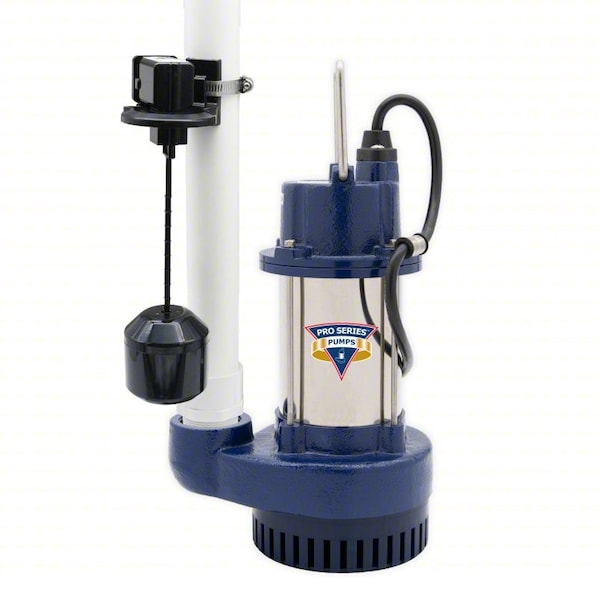

SubmersibleSumpPump, 20ft, 13.375in, 115VAC

  • Mfr # S3050-VS

  • Zoro # G715544452


product price: $412.50
/ea
Free Shipping & Returns

Key Features

Cord Length
20 ft
Impeller Material
Polycarbonate
Phase
Single
Thermal Protection
Auto
Manufacturers Warranty Length
5 yr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S3050-VS
Zoro #
G715544452
UPC #
717301122743
Country of Origin
Taiwan, Province of China

Dimensions

Cord Length
20 ft
Manufacturers Warranty Length
5 yr
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
2 in
Width at Widest Point
4 1/4 in
Body Diameter
8 1/2 in
Solids Diameter - Maximum
1/4 in
Overall Height
13 3/8 in

Details

Impeller Material
Polycarbonate
Phase
Single
Thermal Protection
Auto
Base Material
Cast Iron
Item
Submersible Sump Pump
Gauge/Conductor
16/3
Application
Dewatering
NEC Cord Designation
SJTW
Series
Pro Series
Feet of Head - Maximum
33 ft
Discharge Gender
Female
Liquid Temperature - Maximum
104 Degrees F
Standards
CSA
For Industry
Commercial, Residential
Horsepower
1/2 hp
Flow Rate @ 10 ft of Head
65 gpm
Includes Alarm
No Alarm Included
Rotation Speed - Maximum
3,450 RPM
Requires Control Panel
No Control Panel Required
Flow Rate @ 30 ft of Head
16 gpm
For Media Type
Clear Water
Power Source
Corded Electric
Motor Housing Material
Stainless Steel
Installation
Submersible
Operation
Automatic
Current
4.30 A
Rated Voltage
115V AC
Shaft Seal Type
Double Mechanical
Switch Actuation
Vertical Float
Hazardous Location Class
Not Rated
Frequency
60 Hz
Volute Material
Cast Iron
Duty Cycle
Continuous
Discharge Standard
NPT
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber
Impeller Design
Open
Switch Electrical Connection
Piggyback

Description

Submersible Sump Pump, Rated Voltage 115V AC, Switch Actuation Vertical Float, Switch Electrical Connection Piggyback, Off Point Not Applicable, On Point Not Applicable, Impeller Material Polycarbonate, Overall Height 13 3/8 in, Thermal Protection Auto, Width at Widest Point 4 1/4 in, Duty Cycle Continuous, Cord Length 20 ft, NEC Cord Designation SJTW, Gauge/Conductor 16/3, Manufacturers Warranty Length 5 yr
