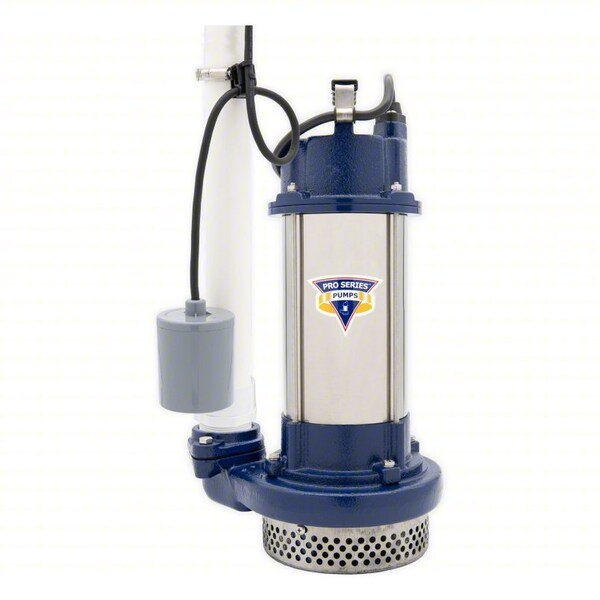

SubmersibleSumpPump, 20ft, 18in, 115VAC

  • Mfr # S3100-TS

  • Zoro # G315544463


product price: $815.99
/ea
Free Shipping & Returns

Key Features

Cord Length
20 ft
Impeller Material
Polycarbonate
Phase
Single
Thermal Protection
Auto
Base Material
Cast Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S3100-TS
Zoro #
G315544463
UPC #
717301124655
Country of Origin
Taiwan, Province of China

Dimensions

Cord Length
20 ft
Manufacturers Warranty Length
5 yr
Overall Height
18 in
Body Diameter
11 in
Solids Diameter - Maximum
1/4 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
2 in

Details

Impeller Material
Polycarbonate
Phase
Single
Thermal Protection
Auto
Base Material
Cast Iron
Application
Dewatering
Gauge/Conductor
16/3
Item
Submersible Sump Pump
NEC Cord Designation
SJTW
Duty Cycle
Continuous
Flow Rate @ 30 ft of Head
59 gpm
Current
11.50 A
For Industry
Commercial, Residential
Rated Voltage
115V AC
Volute Material
Cast Iron
Liquid Temperature - Maximum
104 Degrees F
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber
Standards
CSA
Operation
Automatic
Discharge Gender
Female
Frequency
60 Hz
For Media Type
Clear Water
Series
Pro Series
Power Source
Corded Electric
Rotation Speed - Maximum
3,450 RPM
Requires Control Panel
No Control Panel Required
Horsepower
1 hp
Motor Housing Material
Stainless Steel
Switch Electrical Connection
Piggyback
Feet of Head - Maximum
52 ft
Installation
Submersible
Switch Actuation
Tether Float
Discharge Standard
NPT
Includes Alarm
No Alarm Included
Flow Rate @ 10 ft of Head
92 gpm
Hazardous Location Class
Not Rated
Impeller Design
Open
Shaft Seal Type
Double Mechanical

Description

Submersible Sump Pump, Rated Voltage 115V AC, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Off Point Not Applicable, On Point Not Applicable, Impeller Material Polycarbonate, Overall Height 18 in, Thermal Protection Auto, Width at Widest Point Not Applicable, Duty Cycle Continuous, Cord Length 20 ft, NEC Cord Designation SJTW, Gauge/Conductor 16/3, Manufacturers Warranty Length 5 yr
