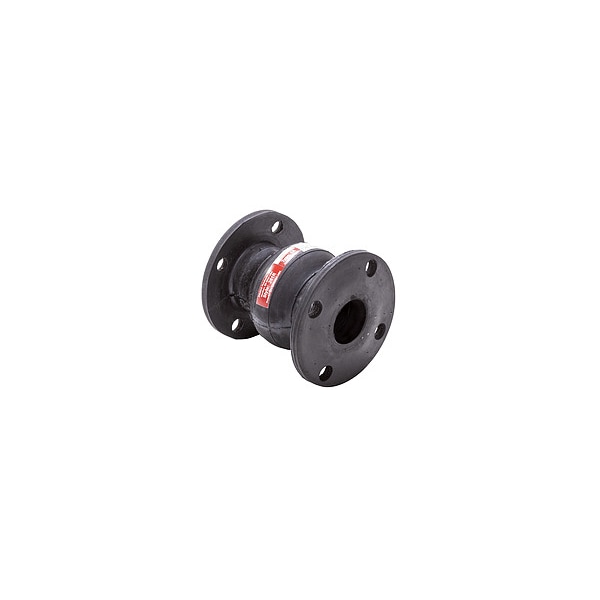

Expansion Joint, 6 in, Flanged, EPDM
Mfr # 060X0661RE
Zoro # G508373320
product price: $947.99
/ea
Free Shipping & Returns
Key Features
Pipe Size
6 in
Overall Length
6 in
Bolt Hole Size
3/4 in
Maximum Off-Center Angle
12 Degrees
Expansion Joint Type
Single Bulb
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
060X0661RE
Zoro #
G508373320
UPC #
-
Country of Origin
Brazil
Dimensions
Pipe Size
6 in
Overall Length
6 in
Bolt Hole Size
3/4 in
Bolt Circle Diameter
9 1/2 in
Flange Diameter
11 in
Details
Item
Expansion Joint
Maximum Off-Center Angle
12 Degrees
Expansion Joint Type
Single Bulb
Reinforcement Material
Rubber Impregnated Polyester
Burst Pressure
900 psi
Joint Material
EPDM
Offset Distance
3/4 in
Maximum Vacuum Pressure
24 in Hg @ 194F
Maximum Operating Temperature
250 Degrees F
Features
Flanges Molded into Body, Retaining Rings
Number of Bolt Holes
8
Bolt Hole Threading
Unthreaded
Expansion Distance
5/8 in
Flange Material
EPDM
Compression Distance
1 1/2 in
Connection Type
Flanged
Maximum Operating Pressure
225 psi @ 194F
Minimum Operating Temperature
-20 Degrees F
Description
Expansion Joint, Bolt Circle Diameter 9 1/2 in, Bolt Hole Size 3/4 in, Bolt Hole Threading Unthreaded, Burst Pressure 900 psi, Compression Distance 1 1/2 in, Connection Type Flanged, Expansion Distance 5/8 in, Expansion Joint Type Single Bulb, Features Flanges Molded into Body, Retaining Rings, Flange Diameter 11 in, Flange Material EPDM, Flange Material Finish Not Applicable, Flange Material Grade Not Applicable, Joint Material EPDM, Joint Material Finish Not Applicable
