Shop PROCO PRODUCTS

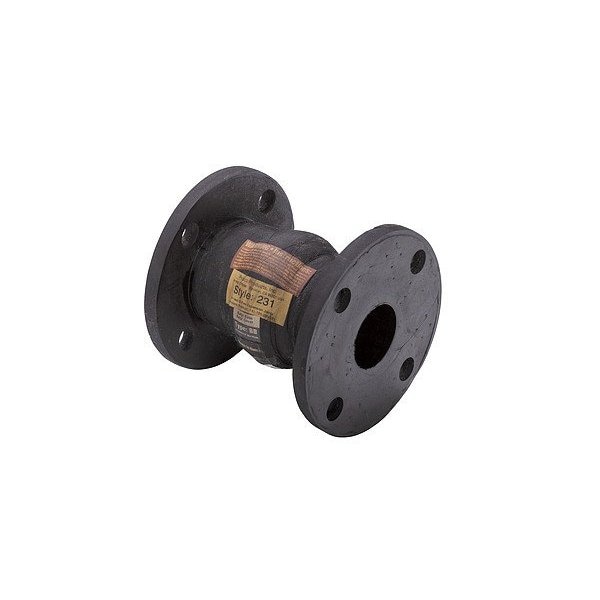

Exp.Joint, SingleBulb, EPDM, 6", Flange

  • Mfr # 060X0631ENSF61

  • Zoro # G008373318

product price:
$
1,734.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
6 in
Bolt Hole Size
3/4 in
Overall Length
6 in
Bolt Hole Threading
Unthreaded
Burst Pressure
800 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
060X0631ENSF61
Zoro #
G008373318
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Pipe Size
6 in
Bolt Hole Size
3/4 in
Overall Length
6 in
Bolt Circle Diameter
9 1/2 in
Flange Diameter
11 in
Wire Rope Length
6 in
Length
6 in

Details

Item
Expansion Joint
Bolt Hole Threading
Unthreaded
Burst Pressure
800 psi
Maximum Off-Center Angle
13 Degrees
For Fluid Type
Potable Water
Compression Distance
1 19/32 in
Features
Flanges Molded into Body, Retaining Rings
Joint Material
EPDM
Maximum Operating Temperature
250 Degrees F
Expansion Joint Type
Single Bulb
Flange Material
EPDM
Maximum Vacuum Pressure
26 in Hg @ 170F
Offset Distance
45/64 in
Seal Material
EPDM
Connection Type
Flanged
Maximum Operating Pressure
200 psi @ 170F
Minimum Operating Temperature
-20 Degrees F
Number of Bolt Holes
8
Expansion Distance
13/16 in
Reinforcement Material
Rubber Impregnated Polyester
Fitting Side B Gender
Male
Fitting Side A Gender
Male
Fitting Side B Type
Flange
Standards
ASME B16.5ANSI B16.1 and ANSI B16.5 Class 125/150, AWWA C-207-07, Table 2 and 3 - Class D, Table 4 - Class E. Hole size shown is 1/8" larger than AWWA Standard, NSF-61

Description

Expansion Joint, Bolt Circle Diameter 9 1/2 in, Bolt Hole Size 3/4 in, Bolt Hole Threading Unthreaded, Burst Pressure 800 psi, Compression Distance 1 19/32 in, Connection Type Flanged, Expansion Distance 13/16 in, Expansion Joint Type Single Bulb, Features Flanges Molded into Body, Retaining Rings, Flange Diameter 11 in, Flange Material EPDM, Flange Material Finish Not Applicable, Flange Material Grade Not Applicable, For Fluid Type Potable Water, Joint Material EPDM
