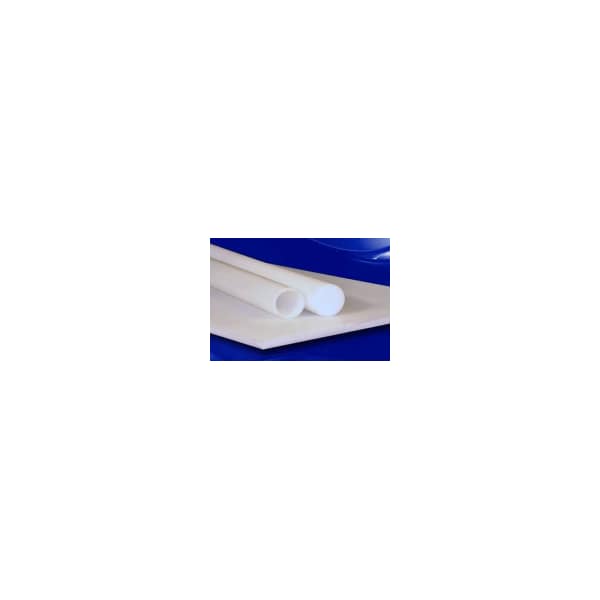

Tivar Hot UHMW Sheet, 2.000 X 48.000 X 96.000 ( Each)

  • Mfr # SUHMWHOT2.000X48.000X96.000

  • Zoro # G400913310


product price:  $5,789.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Height
2
Material
Tivar
Weight
328
Width
48
Length
96
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SUHMWHOT2.000X48.000X96.000
Zoro #
G400913310
UPC #
-
Country of Origin
Multiple

Dimensions

Height
2
Width
48
Length
96

Details

Material
Tivar
Weight
328
Heat Deflection Temp. (264 psi) Deg:F
116
3A Dairy Compliant
Yes
Flexural Strength (psi @ 73 Deg: F)
3500
CoLT Expansion (x 10-5 in./in./Deg:F)
190
Specific Gravity (73 Deg: g/cm3)
0.94
Tensile Elongation at Break (% @ 73 Deg: F)
300
Max. Recommended Use Temp (Deg:F)
275
USDA Compliant
Yes
FDA Compliant
Yes
Dielectric Strength (volts/mil)
2300
UL94 Flammability Rating Method: UL 94
H-B
Tensile Strength (psi @ 73 Deg;)
5800

Description

Tivar® H.O.T. (High Operating Temperature) is formulated to maintain key performance properties in an extended temperature range, Tivar® H.O.T.* will excel in a variety of industrial manufacturing environments where temperatures range up to 275° F, nearly 100° higher than competing UHMW-PE formulations. Tivar® H.O.T. reduces the oxidization rate of the material at higher temperatures thereby slowing material degradation and extending wear-life in chemical, elevated temperature and thermo-cycling environments. In many applications, Tivar® H.O.T. will last up to 10 times longer in higher temperature environments & has excellent wear & release characteristics TIivar® H.O.T. is also a great material for use in conveyor systems or other equipment that is frequently exposed to chemical washdowns in such industries as poultry/meat processing and packaging. It can be also be used in applications ranging from wearstrips for spiral conveyors in the baking industry to drag conveyor flights for moving bulk materials (corn) in grain elevators, or wearstrips for conveyor dryers in drying and dehydrating systems. TIivar® H.O.T. is Brite White and available in the following standard sizes: 48" x 120" (1220mm x 3050mm) sheets with gauges ranging from 1/16" (1.5mm) to 6.0" (152mm) and 48" x 240" sheets with gauges ranging from 3/4" to 3". Other sizes are available on request. It can also be extruded in a variety of standard and custom profiles. Extruded Rods sizes typically have a Minimum Order Quantity. Contact customer service to inquire about current availability. Thickness Tolerance: +/-10% Extruded Rods have a Minimum Order Quantity based on Diameter, & 6-8 Week Lead-Time. Contact customer service to inquire about current availability.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
