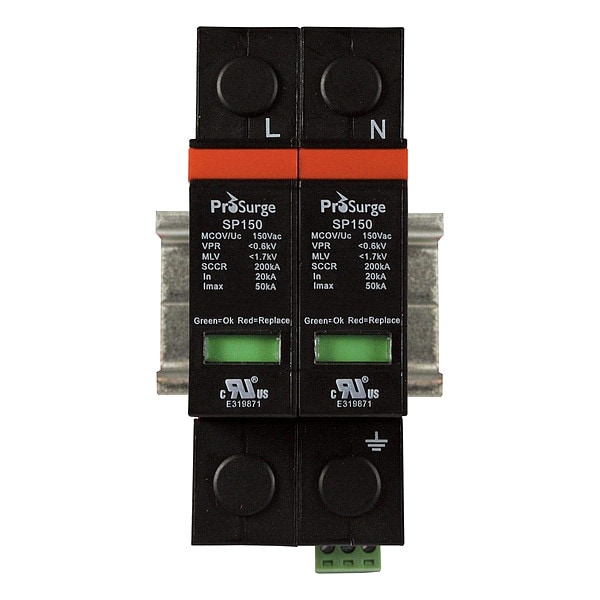

Protec Surge Protection Device, 1 Phase, 120V, 2 Poles, 3 Wires ASISP150-2P - main

Surge Protection Device, 1 Phase, 120V, 2 Poles, 3 Wires

  • Mfr # ASISP150-2P

  • Zoro # G509768903

product price:  $131.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
DIN Rail
Phase
1
Voltage
120V
Number of Poles
2
Voltage Protection Rating
700V (L-G), 700V (N-G), 1500V (L-N)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ASISP150-2P
Zoro #
G509768903
UPC #
810009762454
Country of Origin
China

Dimensions

Length
3 in
Depth
3 3/4 in
Width
1 3/4 in

Details

Item
Surge Protection Device
Mounting Style
DIN Rail
Phase
1
Voltage
120V
Number of Poles
2
Voltage Protection Rating
700V (L-G), 700V (N-G), 1500V (L-N)
Number of Wires
3 Wires
Modes of Protection
L-G, L-N, N-G
Max. Surge Current per Mode
50 kA
Max. Surge Current per Phase
50 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Modular
Yes
Max. Continuing Operating Voltage
150V AC
IP Rating
IP20
Wire Gauge
12 to 6 AWG
Standards
CE, cRUus, IEC61643-11:2011, RoHS, UL 1449 4th Edition
Min. Operating Temp.
-40 Degrees C
Amps
50 kA
Max. Operating Temp.
80 Degrees C
UL SPD Type
Type 1; Type 2; Type 3
Status Indicator
LED Light

Description

Surge Protection, Amps 50 kA, Depth 3.75 in
