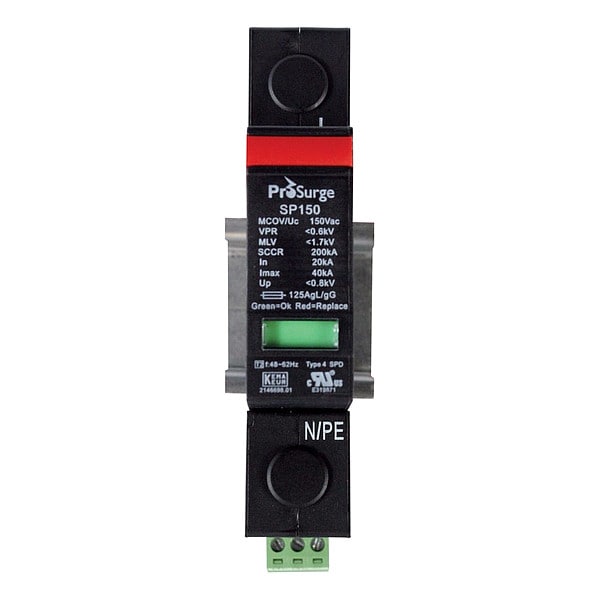

Surge Protection Device, 1 Phase, 120V, 1 Poles, 2 Wires

Mfr # ASISP150-1P
Zoro # G509768927

60.25

Key Features

Mounting Style

DIN Rail

Phase

Voltage

120V

Number of Poles

Voltage Protection Rating

700V (L-G), 700V (L-N)

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: ASISP150-1P
Zoro #: G509768927
UPC #: 810009762461
Country of Origin: China

Dimensions

Length: 3 in
Depth: 3 3/4 in
Width: 1 in

Details

Item: Surge Protection Device
Mounting Style: DIN Rail
Phase: 1
Voltage: 120V
Number of Poles: 1
Voltage Protection Rating: 700V (L-G), 700V (L-N)
Number of Wires: 2 Wires
Modes of Protection: L-G, L-N
Max. Surge Current per Mode: 50 kA
Max. Surge Current per Phase: 50 kA
Nominal Discharge Current: 20 kA
Short Circuit Current Rating: 200kA
Modular: No
Max. Continuing Operating Voltage: 150V AC
IP Rating: IP20
Wire Gauge: 12 to 6 AWG
Standards: CE, cRUus, IEC61643-11:2011, RoHS, UL 1449 4th Edition
Min. Operating Temp.: -40 Degrees C
Amps: 50 kA
Max. Operating Temp.: 80 Degrees C
UL SPD Type: Type 1; Type 2; Type 3
Status Indicator: LED Light

Description

Surge Protection, Amps 50 kA, Depth 3.75 in
