Shop PROXIMITY

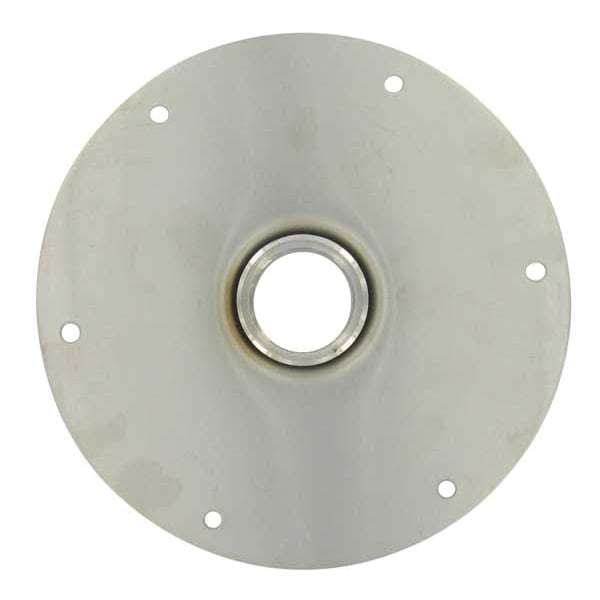

316 SS mounting flange with half coupling.

  • Mfr # FLG-SSH

  • Zoro # G2994187

product price:
$
142.99
/ea
Free Shipping & Returns

Key Features

For Use With
2HMD1
Special Features
Stainless steel
Manufacturers Warranty Length
1 yr
Switch Type
SPDT or optional DPDT snap switch.
Process Connection
1-1/4" male NPT. Optional flange.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLG-SSH
Zoro #
G2994187
UPC #
714452100088
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr

Details

Item
Half Coupling Flange
For Use With
2HMD1
Special Features
Stainless steel
Switch Type
SPDT or optional DPDT snap switch.
Process Connection
1-1/4" male NPT. Optional flange.
Features
316 Stainless Steel Mounting Flange with Half Coupling
Enclosure Rating
Weatherproof (W, WH construction): NEMA 4X, Explosion-proof (E, EH construction): NEMA 4X and rated for Class I, Div. 1 & 2, Groups C & D, Div. 1 & 2, Groups E, F, & G.
Wetted Materials
Paddles: 316 SS. Exposed Shaft: 316 SS. Shaft Seal: PTFE. Mounting Boss: Aluminum. Flexible Coupling: 316 SS. Mounting Flanges: Carbon Steel or 316 SS. Shaft Extension and Shaft Guards: Galvanized Steel or 316 SS.
Electrical Rating
15 A @ 120.
Power Consumption
Weatherproof models: 5 watts, Explosion-proof models: 3 watts.
Agency Approvals
cUL, UL approved as an auxiliary device or as an auxiliary device for hazardous locations.
Conduit Connection
3/4" female NPT.
Temperature Limits
Standard Construction: Process: -40 to 300°F (-40 to 148.9°C), Ambient: -40 to 185°F (-40 to 85°C); High Temperature: Process: -40 to 500°F (-40 to 260°C), Ambient: -40 to 185°F (-40 to 85°C).
Pressure Limit
30 psig (2.07 bar) maximum for .5 micron or larger material.
Service
Dry powder or bulk materials compatible with wetted materials.
Compatible Product Type
Paddle Level Switch
Compatible with Manufacturer Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Product Type
Half Coupling Flange
Compatible Manufacturer Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Manufacturer Part Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible with Manufacturer Model No.
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible with Mfr. Model No.
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
For Use with Mfr Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
For Use With Mfr. Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Pump Manufacturer Part Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Mfr. Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
For Manufacturer Part Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible with Mfr. Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0

Description

Half Coupling Flange, For Use With 2HMD1, Special Features Stainless Steel
