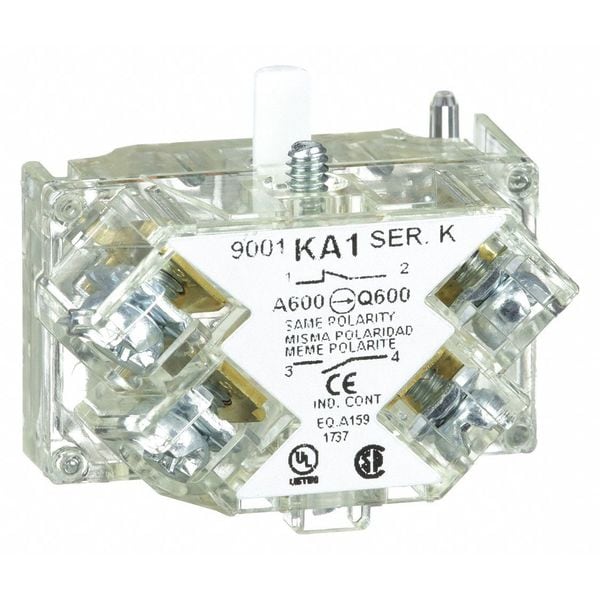

Contact Block, Momentary, 1NC/1NO, 30 mm, 10A at 600V AV, Screw-clamp Terminal
Mfr # 9001KA1
Zoro # G3438023
product price:Â
$
34.99
/ea
Key Features
Contact Rating
10A @ 600V AC
Size
30 mm
Action
Momentary
Application
Finger Safe Operator
Contact Form
1NO/1NC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 9001KA1
- Zoro #
- G3438023
- UPC #
- 785901880004
- Country of Origin
- Korea, Republic of
Dimensions
- Size
- 30 mm
- Connection Size
- 30 mm
- Manufacturer Warranty Length
- 18 mo
Details
- Item
- Contact Block
- Contact Rating
- 10A @ 600V AC
- Action
- Momentary
- Application
- Finger Safe Operator
- Contact Form
- 1NO/1NC
- Color
- Clear
- Standards
- CSA C22.2 No.14, EN, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C4520, JIS C852, UL 508
- Terminal Connection
- Screw/Clamp
- NEMA Contact Rating Designation
- A600/Q600
- For Use With
- Schneider 9001K Series 30mm Operators
- DC Contact Rating
- 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
- Compatible with Series
- 9001K, 9001SK
- AC Contact Rating
- 1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
- Switch Action
- Momentary
- Terminal Connection Type
- Screw Clamp Terminals
- Compatible Operator
- Push Button
Description
Contact Block, Contact Form 1NO/1NC, Contact Rating 10A @ 600V AC, For Use With Schneider 9001K Series 30mm Operators, Action Momentary, 30 mm, Application Finger Safe Operator, NEMA Contact Rating Designation A600/Q600, Color Clear, Terminal Connection Screw/Clamp, Standards CSA C22.2 No.14, EN, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C4520, JIS C852, UL 508
