  11. Carbon steel paddle with full coupling, Minimum bulk density of 30 lb/ cu ft (481kg/ cu m)

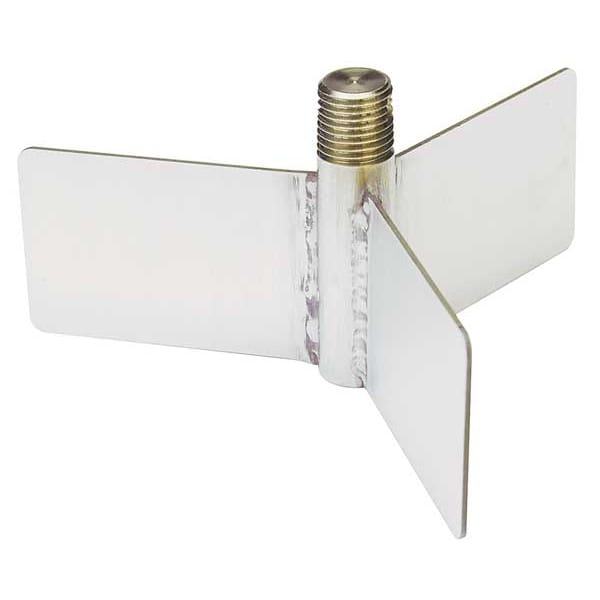

Proximity Carbon steel paddle with full coupling, Minimum bulk density of 30 lb/ cu ft (481kg/ cu m) PDL-2 - main

Carbon steel paddle with full coupling, Minimum bulk density of 30 lb/ cu ft (481kg/ cu m)

  • Mfr # PDL-2

  • Zoro # G0245847

product price: $56.89
/ea

Key Features

For Use With
2HMD1
Special Features
Minimum Bulk Density of 30 Pounds per Cubic Foot
Manufacturers Warranty Length
1 yr
Switch Type
SPDT or optional DPDT snap switch.
Features
Minimum Bulk Density of 30 lb/cu ft (481 kg/cu m)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PDL-2
Zoro #
G0245847
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr

Details

Item
Tri Paddle
For Use With
2HMD1
Special Features
Minimum Bulk Density of 30 Pounds per Cubic Foot
Switch Type
SPDT or optional DPDT snap switch.
Features
Minimum Bulk Density of 30 lb/cu ft (481 kg/cu m)
Enclosure Rating
Weatherproof (W, WH construction): NEMA 4X, Explosion-proof (E, EH construction): NEMA 4X and rated for Class I, Div. 1 & 2, Groups C & D, Div. 1 & 2, Groups E, F, & G.
Process Connection
1-1/4" male NPT. Optional flange.
Electrical Rating
15 A @ 120.
Agency Approvals
cUL, UL approved as an auxiliary device or as an auxiliary device for hazardous locations.
Conduit Connection
3/4" female NPT.
Pressure Limit
30 psig (2.07 bar) maximum for .5 micron or larger material.
Wetted Materials
Paddles: 316 SS. Exposed Shaft: 316 SS. Shaft Seal: PTFE. Mounting Boss: Aluminum. Flexible Coupling: 316 SS. Mounting Flanges: Carbon Steel or 316 SS. Shaft Extension and Shaft Guards: Galvanized Steel or 316 SS.
Temperature Limits
Standard Construction: Process: -40 to 300°F (-40 to 148.9°C), Ambient: -40 to 185°F (-40 to 85°C); High Temperature: Process: -40 to 500°F (-40 to 260°C), Ambient: -40 to 185°F (-40 to 85°C).
Power Consumption
Weatherproof models: 5 watts, Explosion-proof models: 3 watts.
Service
Dry powder or bulk materials compatible with wetted materials.
Product Type
Paddle
Compatible Product Type
Paddle Level Switch
Compatible with Manufacturer Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Manufacturer Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Manufacturer Part Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible with Manufacturer Model No.
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible with Mfr. Model No.
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
For Use with Mfr Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
For Use With Mfr. Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Pump Manufacturer Part Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Mfr. Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0

Description

Tri Paddle, For Use With 2HMD1, Special Features Min. Bulk Density of 30 Pound Per Cubic Foot
