  6. Carbon steel paddle with half coupling, Minimum bulk density of 5 lb/ cu ft (80 kg/ cu m)
Proximity Carbon steel paddle with half coupling, Minimum bulk density of 5 lb/ cu ft (80 kg/ cu m) PDL-1 - main

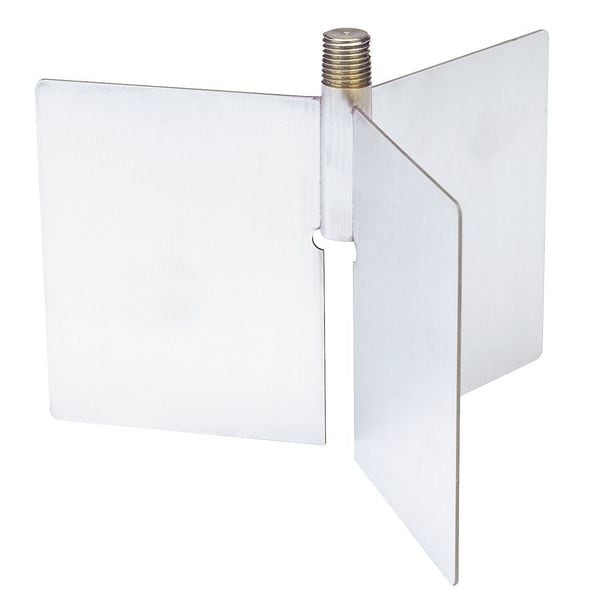

Carbon steel paddle with half coupling, Minimum bulk density of 5 lb/ cu ft (80 kg/ cu m)

  • Mfr # PDL-1

  • Zoro # G2797383

product price:  $86.79
/ea
Free Shipping & Returns

Key Features

For Use With
Mfr. No. PLS-W-S-1-0-0-0-0
Special Features
Minimum Bulk Density of 5 Pounds per Cubic Foot
Manufacturers Warranty Length
1 yr
Switch Type
SPDT or optional DPDT snap switch.
Process Connection
1-1/4" male NPT. Optional flange.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PDL-1
Zoro #
G2797383
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr

Details

Item
Tri Paddle
For Use With
Mfr. No. PLS-W-S-1-0-0-0-0
Special Features
Minimum Bulk Density of 5 Pounds per Cubic Foot
Switch Type
SPDT or optional DPDT snap switch.
Process Connection
1-1/4" male NPT. Optional flange.
Enclosure Rating
Weatherproof (W, WH construction): NEMA 4X, Explosion-proof (E, EH construction): NEMA 4X and rated for Class I, Div. 1 & 2, Groups C & D, Div. 1 & 2, Groups E, F, & G.
Features
Minimum Bulk Density of 5 lb/cu ft (80 kg/cu m)
Wetted Materials
Paddles: 316 SS. Exposed Shaft: 316 SS. Shaft Seal: PTFE. Mounting Boss: Aluminum. Flexible Coupling: 316 SS. Mounting Flanges: Carbon Steel or 316 SS. Shaft Extension and Shaft Guards: Galvanized Steel or 316 SS.
Temperature Limits
Standard Construction: Process: -40 to 300°F (-40 to 148.9°C), Ambient: -40 to 185°F (-40 to 85°C); High Temperature: Process: -40 to 500°F (-40 to 260°C), Ambient: -40 to 185°F (-40 to 85°C).
Agency Approvals
cUL, UL approved as an auxiliary device or as an auxiliary device for hazardous locations.
Pressure Limit
30 psig (2.07 bar) maximum for .5 micron or larger material.
Power Consumption
Weatherproof models: 5 watts, Explosion-proof models: 3 watts.
Electrical Rating
15 A @ 120.
Conduit Connection
3/4" female NPT.
Service
Dry powder or bulk materials compatible with wetted materials.
Compatible Product Type
Paddle Level Switch
Product Type
Paddle
Compatible with Manufacturer Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Manufacturer Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Manufacturer Part Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible with Manufacturer Model No.
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible with Mfr. Model No.
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
For Use with Mfr Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
For Use With Mfr. Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Pump Manufacturer Part Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Mfr. Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0

Description

Tri Paddle, For Use With 2HMD1, Special Features Min. Bulk Density of 5 Pound Per Cubic Foot
