Shop PULS

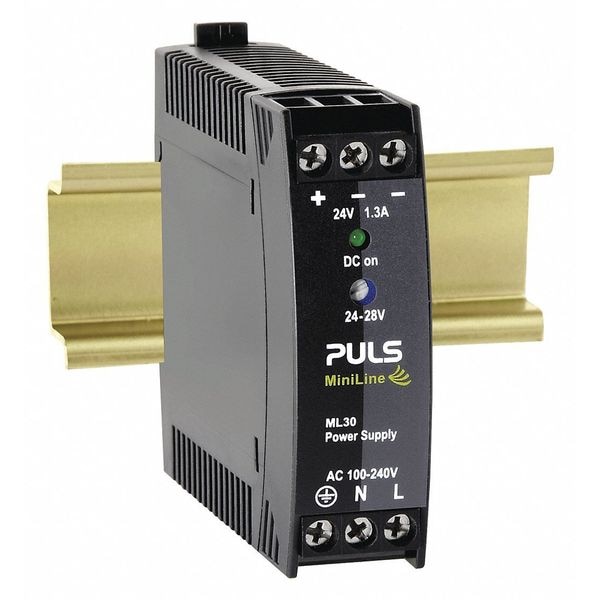

DC Power Supply, 100/240V AC, 24/28V DC, 30 W, 1.3 A, DIN Rail

  • Mfr # ML30.241

  • Zoro # G1893879

CAD Available
product price:
$
119.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Input Voltage
100/240V AC
Output Voltage - Nominal
24 V DC, 28 V DC
Output Power - Rated
30 W
Current - Output
1.3 A
Mounting
DIN Rail
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ML30.241
Zoro #
G1893879
UPC #
875404001645
Country of Origin
China

Dimensions

Overall Height
6.89 in
Overall Width
0.91 in
Overall Depth
3.58 in
Height
75 mm
Depth
91 mm
Width
22.5 mm
Wire Size - Minimum
20 AWG
Wire Size - Maximum
10 AWG

Details

CAD Available
Yes
Item
DC Power Supply
Input Voltage
100/240V AC
Output Voltage - Nominal
24 V DC, 28 V DC
Output Power - Rated
30 W
Current - Output
1.3 A
Mounting
DIN Rail
Housing Material
Plastic
Phase
Single
Power Supply Style
Switching
Output Noise
50mV
Phase - Electrical
Single
Series
MiniLine
Output Amps
1.3A
Status Indicator
Green LED
Features
High Efficiency and Long Lifetime
Hold Up Time
31 msec
Power Rating
30W
IP Rating
IP20
Hz
50/60 Hz
Style
Switching
Output Voltage
24/28V DC
Standards
NEC Class2 Compliant
Operating Temp. Range
-10 to 70°C
Case Material
Plastic Case
Connection
Screw
Input inrush current limitation
NTC
Derating
0.8W/°C for >+60°C
MTBF SN 29500 @ 40°C (h)
2405000h
External input fuse recommendation
B-6A / C-3A
Power factor
0.49
Ripple and noise voltage max.
50mVpp
Power losses, typ.
3.7W
Input inrush current
18A / 35A
Efficiency, typ.
0.894
Adjustment range
24 - 28V
Operating Temperature - Maximum
158 Degrees F
Start Up Time - Maximum
90 msec
Maximum Efficiency @ 230V AC
89.4 %
Input Frequency - Nominal
50/60 Hz
Operating Temperature - Minimum
14 Degrees F
Current - Peak
19 A
Manufacturer Warranty
3 yr
Wire Connection Type
Screw Terminals
Mean Time Between Failures (MTBF)
2,405,000 hr
Current - Inrush
35 A
Hold Up Time - Minimum
141 msec
Input Frequency - Maximuim
60 Hz
Input Frequency - Minimum
50 Hz
Output Voltage - Minimum
24 V DC
Output Voltage - Maximum
28 V DC

Description

DC Power Supply, Input Voltage 100 to 240V AC, 110V DC, Output Voltage 24 to 28V DC, Power Rating 30W, Output Amps 1.3, Mounting DIN Rail, Switching, Case Material Plastic Case, Height 75 mm, Width 22.5 mm, Depth 91 mm, Series MiniLine, Hz 50 to 60 Hz, Phase - Electrical Single, IP Rating IP20, Output Noise 50mV, Hold Up Time 31 msec, Status Indicator Green LED, Features High Efficiency and Long Lifetime, Operating Temp. Range -10 Degrees to 70 Degrees C, Standards NEC Class2 Compliant
