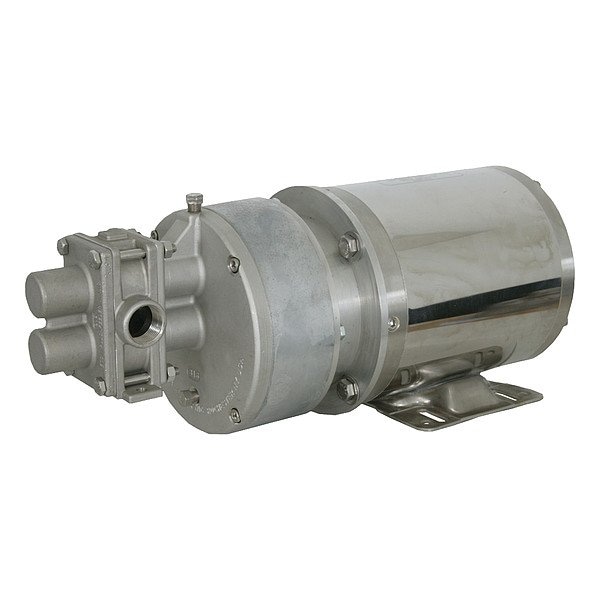

Rotary Gear Pump Head, SPN GMC2-UAE-KKF

Mfr # GMC2-UAE-KKF
Zoro # G122823423

9,384.99

Free Shipping & Returns

Key Features

For Motor Speed - Maximum

1,725 RPM

Operating Temperature - Maximum

450 Degrees F

Flow Rate @ 60 psi

1.2 gpm

Shaft Material Stainless Steel Grade

316

Flow Rate @ 25 psi

1.4 gpm

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: GMC2-UAE-KKF
Zoro #: G122823423
UPC #: 0850058696508
Country of Origin: United States

Dimensions

For Motor Frame Size: 56C
Inlet Diameter: 1/4 in
Discharge Diameter: 1/4 in

Details

For Motor Speed - Maximum: 1,725 RPM
Operating Temperature - Maximum: 450 Degrees F
Flow Rate @ 60 psi: 1.2 gpm
Item: Rotary Gear Pump Head
Shaft Material Stainless Steel Grade: 316
Flow Rate @ 25 psi: 1.4 gpm
Includes Relief Valve: No Relief Valve Included
Required Horsepower: 1/2 hp
Shaft Material: Stainless Steel
Drive Type: Magnetic Drive
Motor Mounting Type: Close Coupled
Flow Rate @ 75 psi: 1.1 gpm
Discharge Standard: Flange
Body Material: 316 Stainless Steel
Viscosity - Maximum: 100 cps
Flow Rate @ 100 psi: 1 gpm
Bearing Material: Carbon Graphite
Series: Isochem Series GMC2
Gear Material: 316 Stainless Steel
Gear Pump Type: External
Operating Temperature - Minimum: -100 Degrees F
Chemical Compatibility: Acetic Acid (Glacial),Acetic Acid 20%,Acetic Acid 80%,Acetone,Alcohol,Aluminum Sodium Sulfate 15%,Aluminum Sulfate 15%,Ammonia Aqueos 35%,Ammonia Liquid,Ammonium Hydroxide,Ammonium Sulfate 50%,Anhydrous Ammonia,Bleach,Calcium Carbonate,Calcium Carbonate 65%,Calcium Chloride,Calcium Chloride 2.5%,Calcium Fluoride 0.15%,Calcium Hydroxide 0.15%,Caustic (Sodium Hydroxide),Chromic Acid,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Citric Acid,Citric Acid 50%,Deionized Water,Ethanol,Ethanol (Cold Ethanol Extraction),Ethyl Acetate,Ethylene Glycol,Fluorosilicic Acid 25%,Formaldehyde,Formaldehyde 40%,Formic Acid,Fresh Water,Fungicides,Heptane,Hexafluorosilicic Acid 35%,Hexane,Hydrazine,Hydrochloric Acid,Hydrochloric Acid 10%,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 30%,Hydrochloric Acid 37%,Hydrochloric Acid 40%,Hydrochloric/Muriatic Acid 100%,Hydrochloric/Muriatic Acid 20%,Hydrochloric/Muriatic Acid 37%,Hydrofluoric Acid,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Hydrofluorosilicic Acid 25%,Isopropanol,Isopropyl,Kerosene,Magnesium Hydroxide 12%,Magnesium Sulfate 25%,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Mineral Oil,Mineral Spirits,Muriatic Acid,Naphtha,Nitric Acid,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint Thinner,Phosphoric Acid,Phosphoric Acid 100%,Phosphoric Acid 40%,Phosphoric Acid 40% Solution,Phosphoric Acid 50%,Phosphoric Acid 60%,Phosphoric Acid 70%,Phosphoric Acid 80%,Phosphoric Acid 90%,Potassium Hydroxide,Potassium Hydroxide 50%,Propionic Acid,Salt Water,Sodium Bicarbonate,Sodium Bicarbonate 10%,Sodium Bisulfate,Sodium Bisulfate 30%,Sodium Bisulfite,Sodium Carbonate 22%,Sodium Fluoride 5%,Sodium Fluorosilicate 6%,Sodium Hydroxide,Sodium Hydroxide 10%,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Sodium Hypochlorite,Sodium Hypochlorite 10%,Sodium Hypochlorite 20%,Sodium Hypochlorite 5%,Sodium Sulfite 20%,Stearic Acid,Sulfur Dioxide 5%,Sulfuric Acid 10%,Sulfuric Acid 10% to 75%,Sulfuric Acid 100%,Sulfuric Acid 20%,Sulfuric Acid 30%,Sulfuric Acid 40%,Sulfuric Acid 50%,Sulfuric Acid 60%,Sulfuric Acid 70%,Sulfuric Acid 75% to 100%,Sulfuric Acid 80%,Sulfuric Acid 90%,Sulfuric Acid up to 10%
Operating Pressure - Maximum: 200 psi
Gear Design: Spur
Flow Rate @ 50 psi: 1.3 gpm
Inlet Standard: Flange

Description

Rotary Gear Pump Head, Body Material 316 Stainless Steel, Viscosity - Maximum 100 cps, Operating Pressure - Maximum 200 psi, Operating Temperature - Maximum 450 Degrees F, Operating Temperature - Minimum -100 Degrees F, Required Horsepower 1/2 hp, Flow Rate @ 100 psi 1 gpm, Gear Design Spur, Shaft Material Stainless Steel, Gear Material 316 Stainless Steel, Motor Mounting Type Close Coupled, Flow Rate @ 50 psi 1.3 gpm, Flow Rate @ 75 psi 1.1 gpm, Flow Rate @ 125 psi Not Applicable
