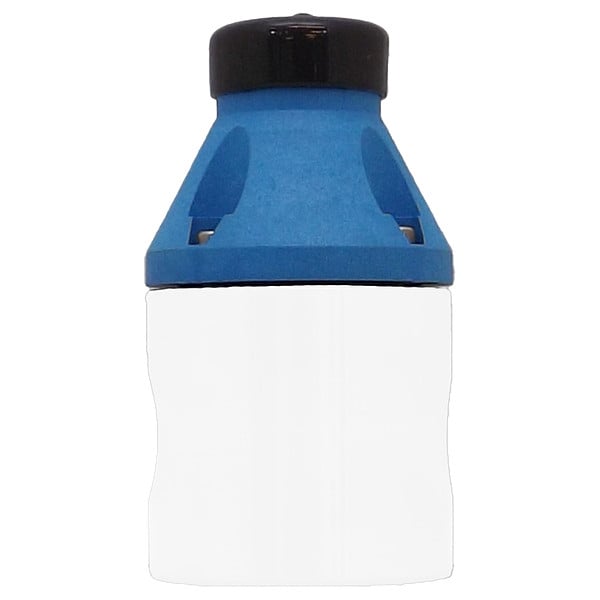

Pulsafeeder Valve, Back Pressure, GPM 15, PVDF NA200001-PVD - main

Valve, Back Pressure, GPM 15, PVDF

  • Mfr # NA200001-PVD

  • Zoro # G1094475

product price:  $1,069.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1/2 in
Body Material
PVDF
Max. Fluid Temp. (F)
280 Degrees F
Max. Pressure (PSI)
150 psi
Application
Commercial Use, Industrial Use, Institutional Use, Light Commercial Use, Residential Use
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
NA200001-PVD
Zoro #
G1094475
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/2 in
Height (In.)
4 1/4 in
Overall Height
4 1/4 in
Overall Width
2 3/8 in
Outlet Connection Size
1/2 in
Inlet Connection Size
1/2 in

Details

Body Material
PVDF
Item
Valve
Max. Fluid Temp. (F)
280 Degrees F
Max. Pressure (PSI)
150 psi
Application
Commercial Use, Industrial Use, Institutional Use, Light Commercial Use, Residential Use
Includes
Valve
Max. Flow GPM
15
Function
Consistent Back Pressure And Prevents Siphoning
Factory Set Pressure
150 psi
Wetted Materials
PTFE/EDPM
Pressure Range (PSI)
10 to 150
Inlet Port (In.)
1/2 (F) NPT
Type
Back Pressure
Outlet Port (In.)
1/2 FNPT
Outlet Connection Type
NPT
For Media
Corrosive Liquids, Non-Flammable Liquids, Non-Potable Water, Potable Water, Water
Flow Rate - Continuous Maximum
15 gpm
Inlet Connection Type
NPT
Fluid Temperature - Maximum
280 Degrees F
Outlet Connection Gender
Female
Operating Pressure - Minimum
10 psi
Inlet Connection Gender
Female
Operating Pressure - Maximum
150 psi
Flow Rate - Intermittent Maximum
1.7 gpm
NSF Certifications for Food and Drinking Water
NSF 51, NSF 61
Port Design
Full Port
Pilot Adjustment - Maximum
150 psi
Pilot Adjustment - Minimum
10 psi

Description

Valve, Back Pressure, Max. Flow GPM 15, Pressure Range 10-150 PSI, Max. Fluid Temp. 280 F, Body Material PVDF, Wetted Materials PTFE/EDPM, Inlet Port 1/2 (F) NPT In., Outlet Port 1/2 (F) NPT In., Max. Pressure 150 PSI, Height 4.25 In.
