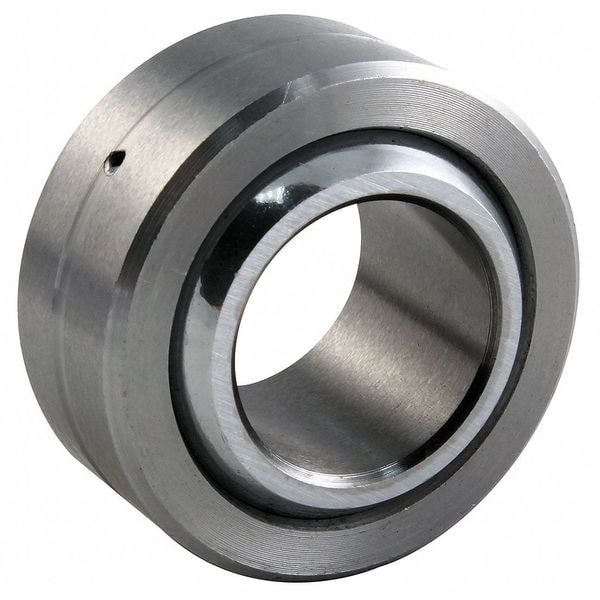

Spherical Bearing, Bore Dia. 0.3750 In.
Mfr # COM6
Zoro # G3021971
product price: $7.59
/eaKey Features
Ball Dia.
0.656 in
Outside Dia.
0.8125 in
Ball Material
Alloy Steel
Static Load Capacity
12,600 lb
Series
Commercial
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
COM6
Zoro #
G3021971
UPC #
-
Country of Origin
China
Dimensions
Ball Dia.
0.656 in
Outside Dia.
0.8125 in
Bore Dia.
0.375 in
Width
0.406 in
Flat Diameter
0.516 in
Outer Ring Width
0.312 in
Bore Diameter
3/8 in
Inner Ring Width
0.406 in
Outside Diameter Tolerance
+0.0000/- 0.0007 in
Ball Diameter
0.656 in
Bore Diameter Tolerance
-0.0005/+0.0015 in
Outside Diameter
13/16 in
Overall Width
0.406 in
Description
Spherical Plain Bearing, Liner Material No Liner, Bore Diameter 3/8 in, Ball Diameter 0.656 in, Outer Ring Width 0.312 in, Outside Diameter 13/16 in, Outer Ring Material Alloy Steel, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance -0.0005/+0.0015 in, Closure Open, Finish Chrome Plated, Flat Diameter 0.516 in, Inner Ring Width 0.406 in, Lubrication Openings Lubrication Hole, Maximum Ball Swivel 10 Degrees , Outside Diameter Tolerance +0.0000/- 0.0007 in
