Technical Specifications
| Zoro #: G2336476 Mfr #: BV-250 | |

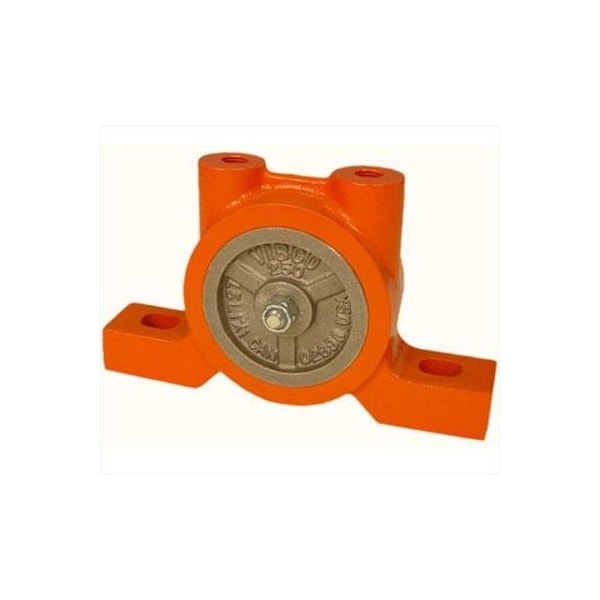

| Item: Pneumatic Vibrator | Mounting Plate: Sold Separately |
| Mounting: Universal | Max. Temp.: 350 Degrees F |
| Duty: Continuous | Vibrator Type: Ball |
| Ball Material: Hardened Steel | Application: Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries |
| CFM @ 60 psi: 11 | CFM @ 80 PSI: 13 |
| dB @ 60 psi: 79 | dB @ 80 psi: 79 |
| Muffler: 1A326 | Outlet Port: 1/4" NPT |
| Inlet Port: 1/4" NPT | Max. Pressure: 80 psi |
| Overall Width: 2-7/16" | Overall Length: 6-3/4" |
| Speed @ 80 psi: 1100 VPM | Overall Height: 3-15/16" |
| Speed @ 60 psi: 10, 500 VPM | Housing Material: Cast iron |
| Force Rating: 380 lb. | Bin Weight Capacity: 3800 lb. |
| Country of Origin (subject to change): United States | |
Product Description
Ball Pneumatic Vibrator, Force 380 Pounds, Air Flow @ 80 PSI 13 CFM, Speed @ 80 PSI 9200 RPM, Maximum Pounds of Bin Material 3800, Noise Level @ 80 PSI 79 dB, Inlet Port Size 1/4 Inch, Outlet Port Size 1/4 Inch, Mounting Plate **4HV73**, Muffler G1066791, Overall Length 6 3/4 Inches, Overall Height 3 15/16 Inches, Overall Width 2 3/4 Inches, Foot Mounted
