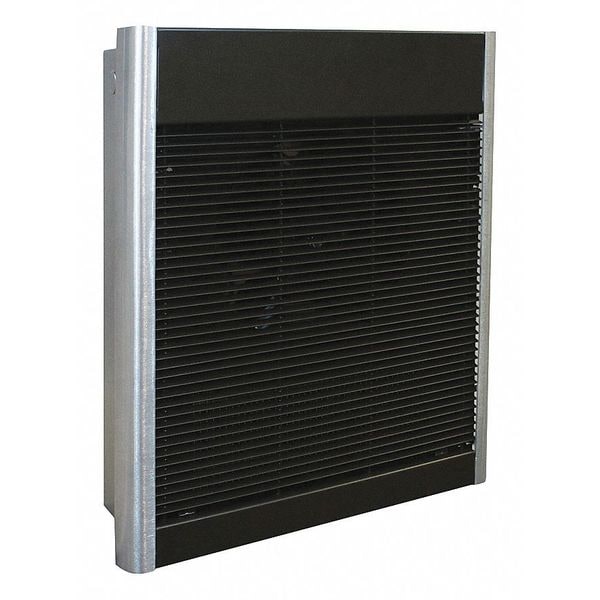

Recessed Electric Wall-Mount Heater, Recessed or Surface, 4000/2000 W, 208V AC, Bronze
Mfr # AWH4408F
Zoro # G7859984
Key Features
Specifications
Product Information
- MFR #
- AWH4408F
- Zoro #
- G7859984
- UPC #
- 685360008356
- Country of Origin
- United States
Dimensions
- Wall Opening Width
- 14-1/4"
- Wall Opening Depth
- 3-7/8"
- Housing Height
- 18 1/4 in
- Housing Width
- 14 3/8 in
- Grille Height
- 19 5/16 in
- Grille Width
- 15 3/4 in
- Grille Depth
- 1 1/4 in
- Housing Depth
- 5 1/4 in
- Wall Opening Height
- 18-1/4"
- Rough-In Dimensions - H x W x D
- 18-1/4 in x 14-1/4 in x 3-7/8 in
- Rough-In Width
- 14 1/4 in
- Rough-In Height
- 18 1/4 in
- Minimum Mounting Height from Floor
- 8 in
- Rough-In Depth
- 3 7/8 in
Description
The QMARK AWH4408F is a recessed electric wall heater with fan-forced operation for heating rooms and open areas. It operates on 208V AC, 1-phase power and offers field-convertible wattage output of 2000 W or 4000 W, with heating capacity of 6,824/13,649 BtuH. This architectural tamper-resistant unit includes a built-in mechanical thermostat, power on/off switch, and automatic fan delay to help reduce cold air at start-up and release residual heat during shut down. The steel housing and steel bar-stock grille have a bronze powder-coated finish, and the heater can be mounted recessed or surface mounted in a horizontal position.
Key Features:
- Fan-forced heating: Delivers 100 cfm airflow with a 105 degrees F air temperature rise.
- Field-convertible wattage: Configurable for 2000 W or 4000 W output.
- Built-in thermostat: Tamper-resistant unit-mounted thermostat with mechanical selector dial control.
- Overheat protection: Manual reset thermal cutout disconnects power if airflow is blocked.
- Automatic fan delay: Delays fan operation at start-up and helps discharge residual heat at shut down.
- BMS compatible: Works with a building management system through an optional relay.
- Maintenance switch: Integrated power on/off disconnect switch.
- Construction: Steel housing and steel grille with bronze powder-coated finish.
- Mounting options: Designed for recessed or surface mounting; rough-in dimensions are 18-1/4 in H x 14-1/4 in W x 3-7/8 in D.
- Listing: cETL Listed.
