Surface-Mount Pump House Heater, Surface, 500/376/500 W, 120/208/240V AC, Beige
Mfr # WHT500
Zoro # G8523015
Key Features
Specifications
Product Information
- MFR #
- WHT500
- Zoro #
- G8523015
- UPC #
- 685360080499
- Country of Origin
- United States
Dimensions
- Width
- 21"
- Grille Width
- 21"
- Height
- 5"
- Depth
- 3-1/2"
- Grille Height
- 5"
- Manufacturers Warranty Length
- 1 yr Limited, 5 yr Elements
- Overall Depth
- 3 1/2 in
- Overall Width
- 21 in
- Overall Height
- 5 in
- Overall Dimensions - H x W x D
- 5 in x 21 in x 3-1/2 in
Description

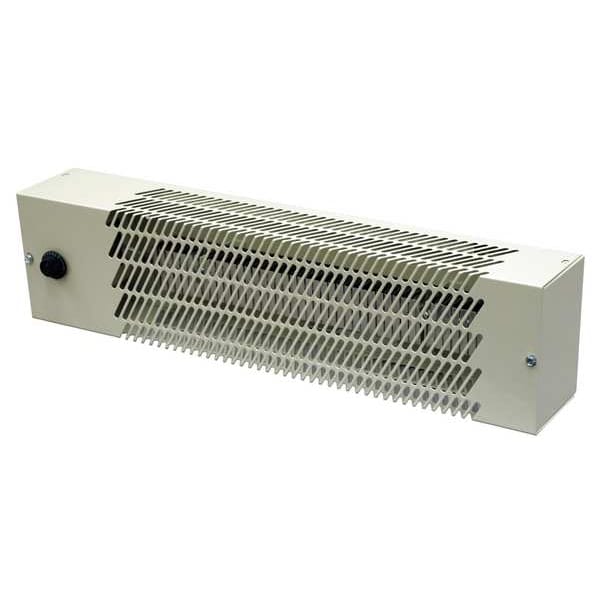

The QMARK WHT500 is a surface-mount pump house heater designed to help protect pipes, pumps, and other water, hydraulic fluid, or oil-filled equipment from freezing in spaces such as well houses, utility rooms, relay stations, pipe rooms, and basements. This convection heater uses a steel sheath, aluminum finned element and features a unit-mounted mechanical selector dial thermostat with a temperature control range of 40 to 70°F. It is shipped wired for 240/208V and can be field converted to 120V.
Key Features of the QMARK WHT500 Surface-Mount Pump House Heater:
- Heating Output: Provides 500W/375W/500W with a heating capacity of 1706/1284/1706 BtuH depending on voltage.
- Voltage: Operates on 120/208/240V AC, 1-phase, 60 Hz power.
- Thermostat: Unit-mounted thermostat with a mechanical selector dial allows temperature adjustment from 40 to 70°F.
- Heating Method: Convection heating with no moving parts.
- Construction: Steel housing with epoxy painted galvanized finish and a steel grille.
- Mounting: Surface-mount design for installation where localized freeze protection is needed.
- Size: Overall dimensions are 21 in W x 5 in H x 3-1/2 in D.
- Wiring Design: Power supply and control wiring terminate in the tamperproof control box; the thermostat is contained within the control box.
- Listing: cETL Listed.
