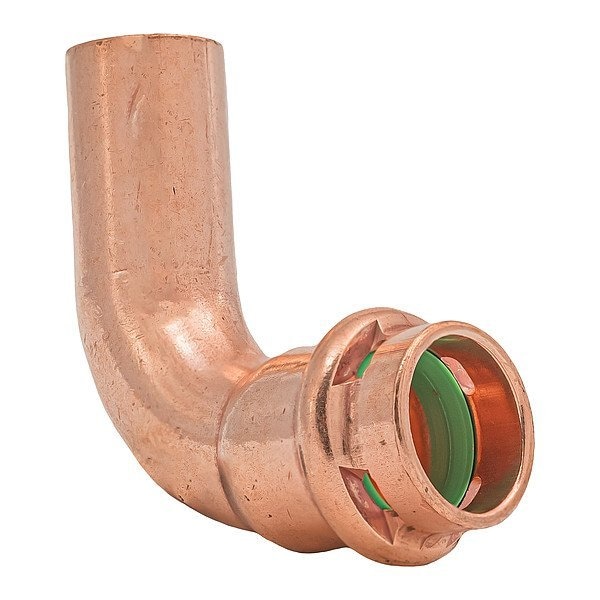

Elbow, Copper, FTG1/2in, Press-fit1/2in
Mfr # SPWE11-STR
Zoro # G416244897
product price:Â
$
2.55
/ea
Key Features
Standards
ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61
Compatible Tube Material
Copper
Operating Temperature - Maximum
250 Degrees F
Fitting Material
Copper
Fitting Shape
90 Degrees Elbow
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SPWE11-STR
- Zoro #
- G416244897
- UPC #
- 845526027571
- Country of Origin
- Viet Nam
Dimensions
- Fitting Side 1 Tube Outer Diameter
- 5/8 in
- Fitting Side 2 Copper Tube Size
- 1/2 in
- Fitting Side 2 Tube Outer Diameter
- 5/8 in
- Fitting Side 1 Copper Tube Size
- 1/2 in
Details
- Item
- Press Copper 90-Degree Elbow
- Standards
- ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61
- Compatible Tube Material
- Copper
- Operating Temperature - Maximum
- 250 Degrees F
- Fitting Material
- Copper
- Fitting Shape
- 90 Degrees Elbow
- Material Grade
- C12200
- Operating Pressure - Maximum
- 300 psi
- Operating Temperature - Minimum
- 0 Degrees F
- For Media Type
- Potable Water
- Compatible Tool Brand
- Quick Fitting
- Fitting Side 1 Connection Type
- FTG
- O-Ring Material
- EPDM
- Color
- Copper
- Compatible Copper Tube Type
- Type K, Type L, Type M
- Fitting Side 2 Connection Type
- Press-fit
- Connector Type
- Adapter
Description
Press Copper 90-Degree Elbow, Fitting Material Copper, Material Grade C12200, O-Ring Material EPDM, Flange Outside Diameter Not Applicable, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Bolt Hole Diameter Not Applicable, Standards ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61, Color Copper, Compatible Copper Tube Type Type K, Type L, Type M, Compatible Tool Brand Quick Fitting
