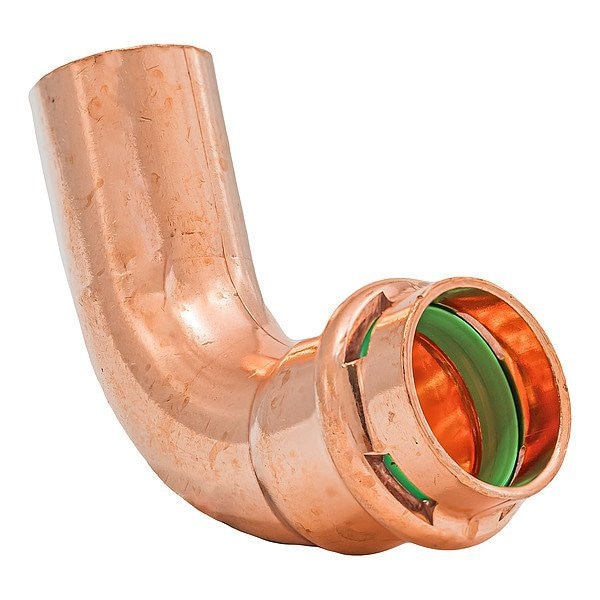

Elbow, Copper, FTG3/4in, Press-fit3/4in
Mfr # SPWE22-STR
Zoro # G616244895
product price: $3.69
/eaKey Features
Standards
ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61
Operating Pressure - Maximum
300 psi
Fitting Side 2 Copper Tube Size
3/4 in
Fitting Side 1 Connection Type
FTG
Fitting Side 2 Tube Outer Diameter
7/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SPWE22-STR
Zoro #
G616244895
UPC #
845526027700
Country of Origin
Viet Nam
Dimensions
Fitting Side 2 Copper Tube Size
3/4 in
Fitting Side 2 Tube Outer Diameter
7/8 in
Fitting Side 1 Copper Tube Size
3/4 in
Fitting Side 1 Tube Outer Diameter
7/8 in
Details
Item
Press Copper 90-Degree Elbow
Standards
ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61
Operating Pressure - Maximum
300 psi
Fitting Side 1 Connection Type
FTG
Operating Temperature - Maximum
250 Degrees F
Material Grade
C12200
For Media Type
Potable Water
Fitting Material
Copper
Fitting Side 2 Connection Type
Press-fit
Compatible Tube Material
Copper
Color
Copper
Compatible Tool Brand
Quick Fitting
Operating Temperature - Minimum
0 Degrees F
O-Ring Material
EPDM
Compatible Copper Tube Type
Type K, Type L, Type M
Fitting Shape
90 Degrees Elbow
Connector Type
Adapter
Description
Press Copper 90-Degree Elbow, Fitting Material Copper, Material Grade C12200, O-Ring Material EPDM, Flange Outside Diameter Not Applicable, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Bolt Hole Diameter Not Applicable, Standards ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61, Color Copper, Compatible Copper Tube Type Type K, Type L, Type M, Compatible Tool Brand Quick Fitting
