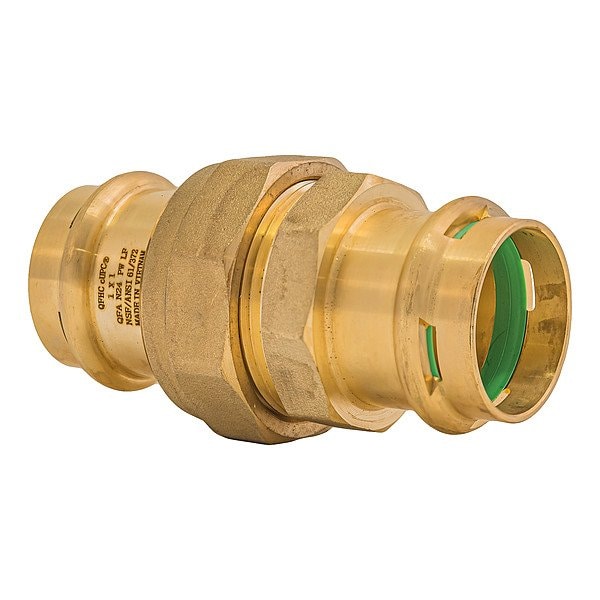

Strt, Brass, Press-fit1in, Press-fit1in
Mfr # SPWU33R
Zoro # G416554095
product price: $15.69
/eaKey Features
Fitting Side 2 Copper Tube Size
1 in
Connector Type
Union
Material Grade
C46500
Fitting Side 2 Tube Outer Diameter
1 1/8 in
Fitting Side 1 Copper Tube Size
1 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SPWU33R
Zoro #
G416554095
UPC #
845526027939
Country of Origin
Viet Nam
Dimensions
Fitting Side 2 Copper Tube Size
1 in
Fitting Side 2 Tube Outer Diameter
1 1/8 in
Fitting Side 1 Copper Tube Size
1 in
Fitting Side 1 Tube Outer Diameter
1 1/8 in
Details
Connector Type
Union
Material Grade
C46500
Item
Crimp Union Fitting
Fitting Shape
Straight
Compatible Tube Material
Copper
Compatible Tool Brand
Quick Fitting
Fitting Material
Brass
Operating Pressure - Maximum
300 psi
Compatible Copper Tube Type
Type K, Type L, Type M
O-Ring Material
EPDM
Standards
ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61
Fitting Side 1 Connection Type
Press-fit
Operating Temperature - Maximum
250 Degrees F
Fitting Side 2 Connection Type
Press-fit
For Media Type
Potable Water
Operating Temperature - Minimum
0 Degrees F
Description
Crimp Union Fitting, Fitting Material Brass, Material Grade C46500, O-Ring Material EPDM, Flange Outside Diameter Not Applicable, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Bolt Hole Diameter Not Applicable, Standards ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61, Compatible Copper Tube Type Type K, Type L, Type M, Compatible Tool Brand Quick Fitting, Compatible Tube Hardness Not Applicable
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
