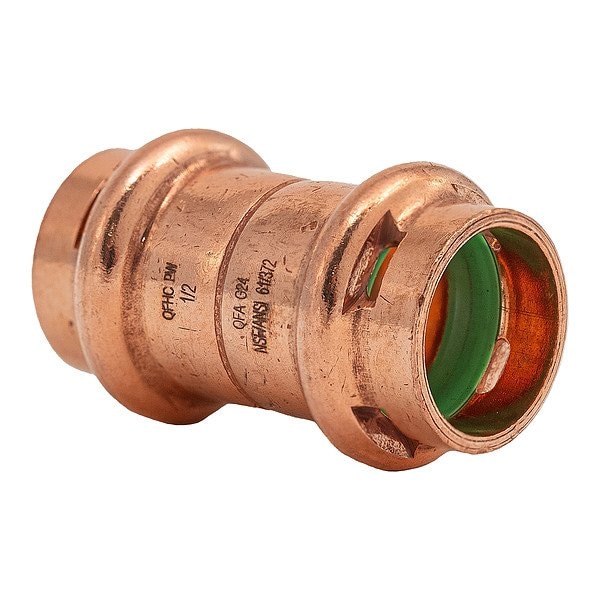

Strt, Copper, Press-fit 1/2", 1/2"
Mfr # SPWC11R
Zoro # G916244960
product price: $1.45
/eaKey Features
Standards
ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61
Fitting Side 2 Copper Tube Size
1/2 in
For Media Type
Potable Water
Fitting Side 1 Tube Outer Diameter
5/8 in
Fitting Material
Copper
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SPWC11R
Zoro #
G916244960
UPC #
845526027526
Country of Origin
Viet Nam
Dimensions
Fitting Side 2 Copper Tube Size
1/2 in
Fitting Side 1 Tube Outer Diameter
5/8 in
Fitting Side 2 Tube Outer Diameter
5/8 in
Fitting Side 1 Copper Tube Size
1/2 in
Details
Item
Press Copper Coupling with Stop
Standards
ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61
For Media Type
Potable Water
Fitting Material
Copper
Compatible Tube Material
Copper
Connector Type
Coupling
Material Grade
C12200
Fitting Shape
Straight
Operating Temperature - Minimum
0 Degrees F
Compatible Tool Brand
Quick Fitting
Compatible Copper Tube Type
Type K, Type L, Type M
Fitting Side 2 Connection Type
Press-fit
Operating Temperature - Maximum
250 Degrees F
O-Ring Material
EPDM
Color
Copper
Fitting Side 1 Connection Type
Press-fit
Center Stop Type
Dimple Center Stop
Operating Pressure - Maximum
300 psi
Description
Press Copper Coupling with Stop, Fitting Material Copper, Material Grade C12200, O-Ring Material EPDM, Flange Outside Diameter Not Applicable, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Bolt Hole Diameter Not Applicable, Standards ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61, Color Copper, Compatible Copper Tube Type Type K, Type L, Type M, Compatible Tool Brand Quick Fitting
