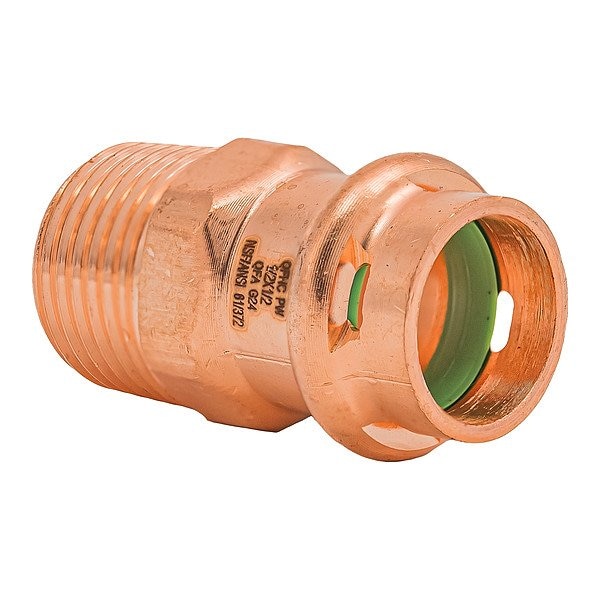

Strt, Copper, Press-fit1/2in, MNPT1/2in
Mfr # SPWM11R
Zoro # G916244946
product price:Â
$
2.45
/ea
Key Features
Standards
ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61
Operating Temperature - Minimum
0 Degrees F
Compatible Tube Material
Copper
Material Grade
C12200
For Media Type
Potable Water
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SPWM11R
- Zoro #
- G916244946
- UPC #
- 845526027557
- Country of Origin
- Viet Nam
Dimensions
- Fitting Side 1 Copper Tube Size
- 1/2 in
- Fitting Side 1 Tube Outer Diameter
- 5/8 in
- Fitting Side 2 Pipe Size
- 1/2 in
Details
- Item
- Press Copper MNPT Adapter
- Standards
- ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61
- Operating Temperature - Minimum
- 0 Degrees F
- Compatible Tube Material
- Copper
- Material Grade
- C12200
- For Media Type
- Potable Water
- Operating Pressure - Maximum
- 300 psi
- Color
- Copper
- Operating Temperature - Maximum
- 250 Degrees F
- Fitting Shape
- Straight
- Compatible Tool Brand
- Quick Fitting
- Connector Type
- Adapter
- Fitting Side 2 Connection Type
- MNPT
- Compatible Copper Tube Type
- Type K, Type L, Type M
- Fitting Side 1 Connection Type
- Press-fit
- Fitting Material
- Copper
- O-Ring Material
- EPDM
Description
Press Copper MNPT Adapter, Fitting Material Copper, Material Grade C12200, O-Ring Material EPDM, Flange Outside Diameter Not Applicable, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Bolt Hole Diameter Not Applicable, Standards ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61, Color Copper, Compatible Copper Tube Type Type K, Type L, Type M, Compatible Tool Brand Quick Fitting
