  9. QC ES-5400 Steel Ceiling Whole House Fan
Shop All Whole House Fans
Quietcool

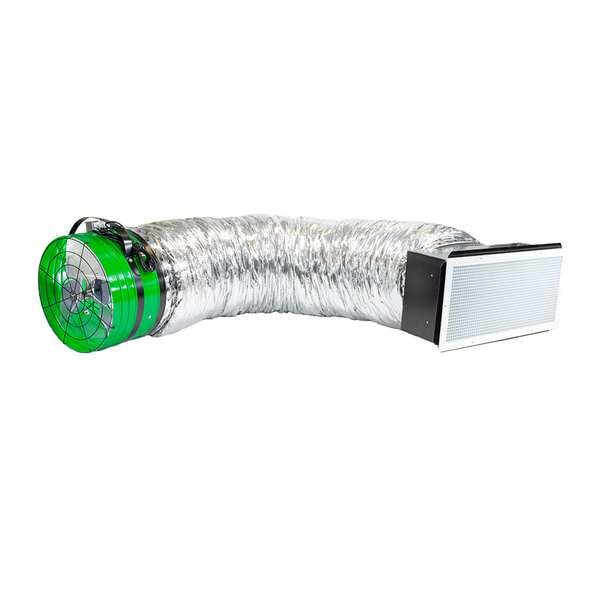

QC ES-5400 Steel Ceiling Whole House Fan

product price: $1,558.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Energy Saver Whole House Fan
  • Fan Voltage 120V AC
  • Coverage (Square-Ft.) 1667 To 2502
  • CFM High 5,003 cfm
  • Includes 9 Foot Duct, Accessory Bag, Cut-out Template, Damper Box, Motorhead, Window Locks
See all product information

Product Information

Dimensions

For Cut-Out Height 14 1/2 in
Grille Length 32 in
For Cut-Out Width 30 1/2 in
Grille Width 16 in
Blade Diameter 20 in

Details

Type Energy Saver Whole House Fan
Fan Voltage 120V AC
Coverage (Square-Ft.) 1667 To 2502
CFM High 5,003 cfm
Includes 9 Foot Duct, Accessory Bag, Cut-out Template, Damper Box, Motorhead, Window Locks
Motor Type Electronically Commutated
Number of Blades 3
Housing Material Steel
Phase 1
CFM Low 2,842 cfm
Fits 16 in or 24 in Center Joists
Housing Finish Powder Coated
Amps 6.17/1.32 A
Watts 497/88.9 W
Item Whole House Fan
Hz 60 Hz
Wattage 497 W
Includes Grill Yes
High-Efficiency Motor Yes
Drive Type Direct Drive
Standards UL Listed
Maximum Noise Level 1.8 sones
Coverage Area 2,502 sq ft
Maximum Coverage Area 2,502 sq ft
For High-Static Pressure Applications Yes
Speed Controllable Yes
Blade Material Steel
Rough Opening Type Square
Number of Speeds 2
Grille Material Aluminum
Quiet Design Yes
Nameplate Voltage 120V AC
Maximum Airflow 5,003 cfm

Description

Whole House Fan, Mounting Location Ceiling, Quiet Design Yes, Number of Speeds 2, Nameplate Voltage 120V AC, Speed Controllable Yes, Blade Diameter 20 in, Drive Type Direct Drive, Maximum Airflow 5,003 cfm, Maximum Noise Level 1.8 sones, Wattage 497 W, Coverage Area 2,502 sq ft, Rough Opening Type Square, For High-Static Pressure Applications Yes, High-Efficiency Motor Yes, Number of Blades 3, Blade Material Steel, Housing Material Steel, Grille Material Aluminum, Standards UL Listed
