Shop RACO

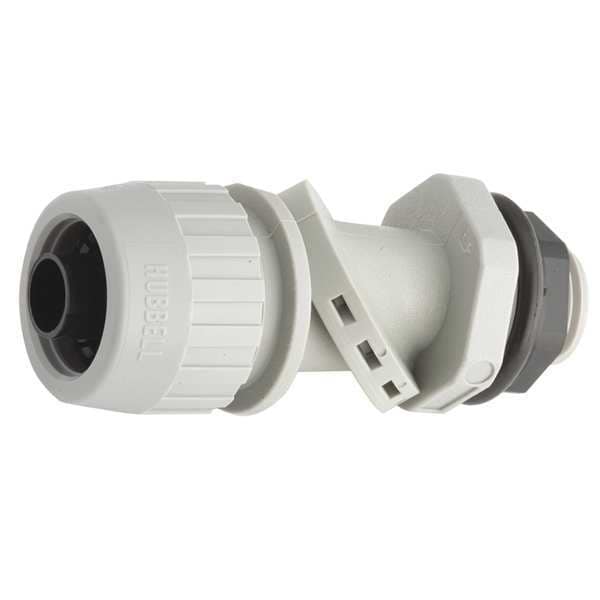

Conduit Fitting Connector, 1/2 in, Liquid-Tight, Nylon, Electro Zinc Plated, Gray

  • Mfr # 4732

  • Zoro # G5491020

product price:  $9.95
/ea

Key Features

Conduit Fitting Type
Connector
Trade Size
1/2 in
Connection Type
Liquid-Tight
Material
Nylon
Finish
Electro Zinc Plated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4732
Zoro #
G5491020
UPC #
050169947326
Country of Origin
United States

Dimensions

Trade Size
1/2 in
Overall Length
3 9/32 in
Mesh Length
No Strain Relief Mesh
Length
3.27 in
Height (In.)
1.3 in
Width
1.300 in
Compatible Knockout Trade Size
1/2 in
Overall Height
1 5/16 in
Overall Width
1 5/16 in
Dimensions
3.27 in x 1.3 in x 1.3 in
Height
1.3 in
Conduit Trade Size
1/2 in
Wire Rope Length
3 9/32 in

Details

Item
Conduit Fitting
Conduit Fitting Type
Connector
Connection Type
Liquid-Tight
Material
Nylon
Finish
Electro Zinc Plated
Color
Gray
Use With - Conduit
Flexible Liquid Tight Non-Metallic Type B Conduit
For Use With
Flexible Liquid Tight Non-Metallic Type B Conduit
External Grounding Lug
No
Connector Type
Multi-Angle
Style - Connector
Adjustable from 0 Degrees to 90 Degrees
Hazardous Location Rating
Not Rated
Standards
CSA C22.2 No. 18, UL 514B
Box Connection
1/2 in MNPT
Mesh Material
No Strain Relief Mesh
Insulated
No
Application
For use in dry or wet locations when the conduit and fittings are not subject to physical damageUse Type B conduit and fittings whenever flexibility is required for installation, operation, or maintenance
Features
All gray nonmetallic construction provides superior corrosion resistance; Each connector is supplied with a Neoprene O-ring and nylon gasket; SWIVEL-LOK, multi-position connector (trade sizes 3/8 in. to 1 in.) twists from 0° to 90°, easing installation in difficult locations and eliminating need to stock other angle connectors; UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation; Additional sizes available
Compatible Conduit Type
Flexible Liquid Tight Non-Metallic Type B Conduit
Weight
0.1 lb
Elbow Angle
90 Degrees
Connection Orientation
0 Degrees to 90 Degrees
Connector Style
Adjustable from 0 Degrees to 90 Degrees
Certified Listed
UL ListedCSA Certified
Fitting Type
Connectors
Nema Rating
NEMA 4X, 12 and 13
Conduit Type
Liquidtight
Environmental Conditions
Wet Location
Industry Standard(s)
UL 514B
Item - Conduit Fitting
Liquid Tight Conduit Fitting
Conduit Fitting Material
Nylon

Description

Liquid-Tight Conduit Fitting, Insulated No, Trade Size 1/2 in, Compatible Conduit Type Flexible Liquid Tight Non-Metallic Type B Conduit, Box Connection 1/2 in MNPT, Nylon, Color Gray, For Use With Flexible Liquid Tight Non-Metallic Type B Conduit, Connection Orientation 0 Degrees to 90 Degrees , Mesh Material No Strain Relief Mesh, Hazardous Location Rating Not Rated, Compatible Knockout Trade Size 1/2 in, Connector Style Adjustable from 0 Degrees to 90 Degrees , External Grounding Lug No
