  11. Cord Connector, 2-3/64" L, 3/4" Conduit

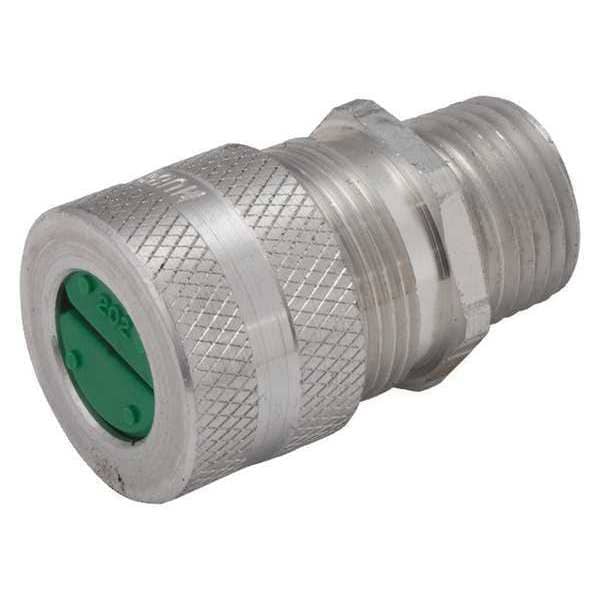

Raco Cord Connector, 2-3/64" L, 3/4" Conduit 4803-2 - main

Cord Connector, 2-3/64" L, 3/4" Conduit

  • Mfr # 4803-2

  • Zoro # G5490880

product price: $15.29
/ea

Key Features

Hub Size
3/4 in MNPT
Material
Aluminum
Color
Silver
Length
2-3/64"
Standards
UL 514B
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4803-2
Zoro #
G5490880
UPC #
050169480328
Country of Origin
United States

Dimensions

Hub Size
3/4 in MNPT
Length
2-3/64"
Length - Box to End of Connector
9/16 in
Conduit Size
3/4"
Length - External Strain Relief
No External Strain Relief
Cord Dia. Range
0.19 in to 0.25 in
Compatible Conduit Trade Size
3/4 in
Thread Size
3/4 in
Form Size
F2
Height
1.13 in
Size
2.05 in x 1.13 in x 1.13 in
Width
1.130 in
Each - Width
1.130 in
Dimensions
2.05 in x 1.13 in x 1.13 in
Trade Size
3/4 in

Details

Item
Enhanced Rating Cord Connector
Material
Aluminum
Color
Silver
Standards
UL 514B
Style - Connector
Straight
Box Connection
3/4 in MNPT
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Number of Cords
1
Material - Cord Connector
Aluminum
Body Color - Cord Connector
Silver
Item - Cord Connector
Enhanced Rating Cord Connector
Gland Color Code
Black
Connector Type
Straight
Insulated
No
Material - External Strain Relief
No External Strain Relief
Strain Relief Type
No External Strain Relief
Body Color
Silver
Grommet Color Code
Black
Thread Type
NPT Thread
Liquid Tight
Yes
Grommet Material
Neoprene
Environmental Rating
Liquid Tight
Compatible Conduit Type
Liquid Tight Cord Connector
For Maximum Cable OD
0.25 in
For Minimum Cable OD
0.187 in
Connection Orientation
Straight
Collar Material
Aluminum
Body Material
Aluminum
Certified Listed
UL Listed;CSA Certified
Environmental Conditions
Wet Location
Configuration
Straight
Conduit Type
Liquidtight
Standard
UL 514B
Product Type
Commercial Fittings
Cable Range
.187 - .250 in
Hazardous Rating(s)
Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2
Fitting Type
Connectors
Color Code
Red
Industry Standard(s)
UL 514B
Features
Aluminum construction provides a corrosion resistant installation; Innovative GOTHCA® ring incorporates a split hinge design to prevent friction and to provide strain relief; Neoprene grommet; Knurled compression nut allows the fittings to be hand tightened to UL requirements; GOTCHA® color-coded ring provides fast identification of cord size; Additional colors and sizes available

Description

Enhanced Rating Cord Connector, Cord Dia. Range 0.19 in to 0.25 in, Box Connection 3/4 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Black, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, Length - Box to End of Connector 9/16 in, Insulated No, Standards UL 514B
