Raco

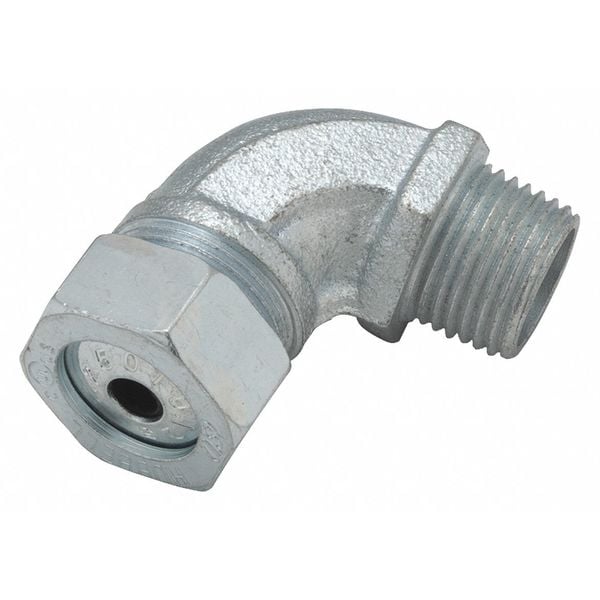

Cord Connector, Silver, 1-51/64" L, Iron

product price: $7.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Style - Connector 90 Degrees
  • Hub Size 1/2 in MNPT
  • Material Iron
  • Cord Dia. Range 0.25 in to 0.38 in
  • Box Connection 1/2 in MNPT
See all product information

Product Information

Dimensions

Hub Size 1/2 in MNPT
Cord Dia. Range 0.25 in to 0.38 in
Length - Box to End of Connector 1 3/8 in
Conduit Size 1/2"
Length 1-51/64"
Length - External Strain Relief No External Strain Relief
Form Size F1
Compatible Conduit Trade Size 1/2 in
Thread Size 1/2 in
Trade Size 1/2 in
Width 1.047 in
Size 1.8 in x 1.047 in x 1.899 in
Each - Width 1.047 in
Dimensions 1.8 in x 1.047 in x 1.899 in
Height 1.899 in

Details

Item Enhanced Rating Cord Connector
Item - Cord Connector Enhanced Rating Cord Connector
Style - Connector 90 Degrees
Material Iron
Box Connection 1/2 in MNPT
Color Silver
Material - Cord Connector Malleable Iron
Material - External Strain Relief No External Strain Relief
Gland Color Code Imprinted
Number of Cords 1
Standards cULus
Body Color - Cord Connector Silver
Connector Type Straight
Strain Relief Type No External Strain Relief
Insulated No
Hazardous Location Rating Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Environmental Rating Liquid Tight
For Minimum Cable OD 0.25 in
Grommet Color Code Imprinted
Body Color Silver
For Maximum Cable OD 0.375 in
Liquid Tight Yes
Thread Type NPT Thread
Collar Material Iron
Resistance Properties Corrosion Resistant
Connection Orientation 90 Degrees
Body Material Iron
Grommet Material Neoprene
Thread-Type NPT Thread
Conduit Type Liquidtight
Cable Range 0.250 - 0.375 in
Hazardous Rating(s) Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2
Certified Listed cULus Listed
Configuration 90 Degrees
Fitting Type Connectors
Standard cULus Listed
Product Type Commercial Fittings
Environmental Conditions Wet Location
Features All steel/malleable construction provides mechanical strength; Unique Neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal; Washers have size range imprinted for indentification - eliminates misidentifying inventory; Use RACO locknuts and sealing washers to complete a liquidtight installation on a sheet metal box or panel; All metallic components are zinc electroplated for corrosion protection; 1/2 in. to 3/4 in. Malleable Iron bodies; 1/2 in. to 3/4 in. Steel nuts; Additional sizes available

Description

Enhanced Rating Cord Connector, Cord Dia. Range 0.25 in to 0.38 in, Box Connection 1/2 in MNPT, Material - Cord Connector Malleable Iron, External Strain Relief Material No External Strain Relief, Gland Color Code Imprinted, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, Length - Box to End of Connector 1 3/8 in, Insulated No, Standards cULus
