  11. Cord Connector, Silver, 1-7/16" L, Steel
This item is Discontinued.

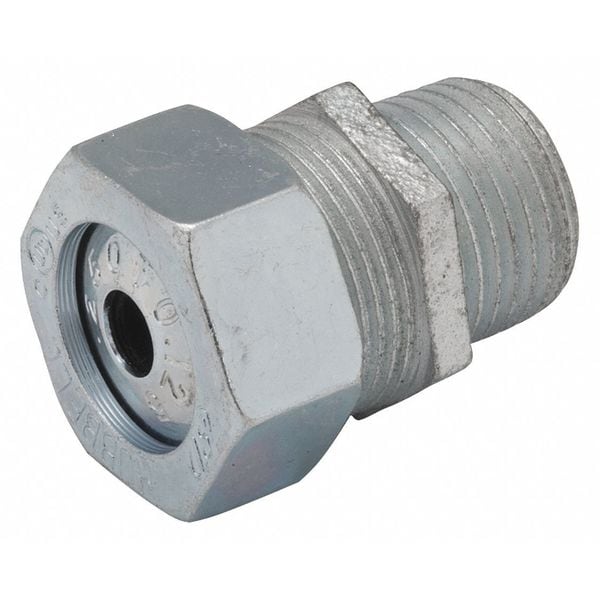

Raco Cord Connector, Silver, 1-7/16" L, Steel 3722-1

Cord Connector, Silver, 1-7/16" L, Steel (Discontinued)

  • Mfr # 3722-1
  • Zoro # G5490838
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3722-1
Zoro #
G5490838
UPC #
050169982976
Country of Origin
China

Dimensions

Hub Size
1/2 in MNPT
Length
1-7/16"
Length - External Strain Relief
No External Strain Relief
Cord Dia. Range
0.25 in to 0.35 in
Conduit Size
1/2"
Length - Box to End of Connector
1 7/16 in
Compatible Conduit Trade Size
1/2 in
Thread Size
0.5 in
Dimensions
1.44 in x 1.13 in x 1.13 in
Size
1.44 in x 1.13 in x 1.13 in
Width
1.130 in
Each - Width
1.130 in
Trade Size
0.5 in
Height
1.13 in

Details

Item
Enhanced Rating Cord Connector
Material
Steel
Color
Silver
Standards
cULus
Style - Connector
Straight
Material - Cord Connector
Steel
Strain Relief Type
No External Strain Relief
Material - External Strain Relief
No External Strain Relief
Number of Cords
1
Body Color - Cord Connector
Silver
Insulated
No
Gland Color Code
White
Box Connection
1/2 in MNPT
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Connector Type
Straight
Item - Cord Connector
Enhanced Rating Cord Connector
Grommet Material
Neoprene
Connection Orientation
Straight
Body Material
Steel
For Maximum Cable OD
0.35 in
For Minimum Cable OD
0.25 in
Collar Material
Steel
NEMA Rating
NEMA 4
Thread Type
NPT Thread
Liquid Tight
Yes
Grommet Color Code
White
Body Color
Silver
Certified Listed
cULus Listed
Hazardous Rating(s)
Class I, Div. 2;Class II, Div. 1 & 2;Class III, Div. 1 & 2
Standard
cULus Listed
Application
For use in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cable;RACO liquidtight strain relief cord connectors are suitable for use in Class I, Div. 2; Class II, Div. 1 & 2; and Class III, Div. 1 & 2 hazardous locations
Features
Steel construction provides mechanical strength and durability; Neoprene grommets are color-coded by cable diameter allowing for quick and easy indentification; Metallic components are zinc plated for corrosion protection; Unique grommet design is forced up and around the cord when the nut is tightened creating a liquidtight seal; Time saving and easy installation - no need to disassemble the fitting for cord installation; Additional colors and sizes available

Description

Enhanced Rating Cord Connector, Cord Dia. Range 0.25 in to 0.35 in, Box Connection 1/2 in MNPT, Material - Cord Connector Steel, External Strain Relief Material No External Strain Relief, Gland Color Code White, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, Length - Box to End of Connector 1 7/16 in, Insulated No, Standards cULus
