Raco

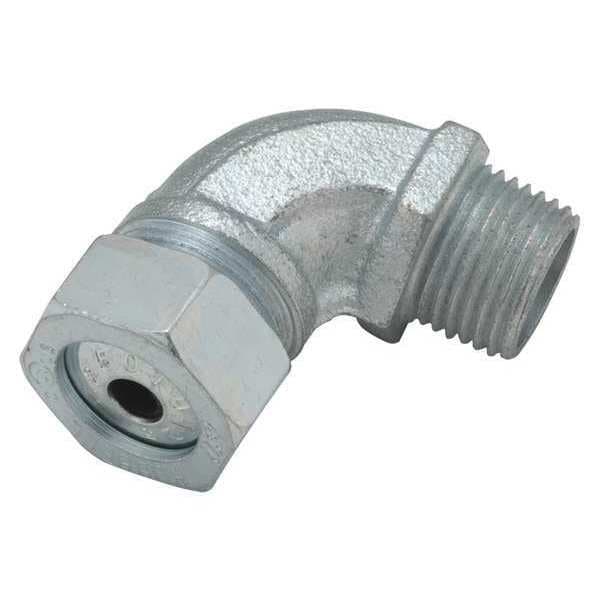

Cord Connector, Silver, 2-3/4" L, Iron

product price: $9.65
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Style - Connector 90 Degrees
  • Hub Size 1/2 in MNPT
  • Material Iron
  • Cord Dia. Range 0.15 in to 0.25 in
  • Box Connection 1/2 in MNPT
See all product information

Product Information

Dimensions

Hub Size 1/2 in MNPT
Cord Dia. Range 0.15 in to 0.25 in
Length - Box to End of Connector 1 1/4 in
Conduit Size 1/2"
Length 2-3/4"
Length - External Strain Relief No External Strain Relief
Compatible Conduit Trade Size 1/2 in
Thread Size 1/2 in
Size 2.75 in x 1.25 in x 1.25 in
Dimensions 2.75 in x 1.25 in x 1.25 in
Each - Width 1.250 in
Width 1.250 in
Height 1.25 in
Trade Size 0.5 in

Details

Item Enhanced Rating Cord Connector
Item - Cord Connector Enhanced Rating Cord Connector
Style - Connector 90 Degrees
Material Iron
Box Connection 1/2 in MNPT
Color Silver
Material - Cord Connector Malleable Iron
Material - External Strain Relief No External Strain Relief
Gland Color Code Red
Number of Cords 1
Standards cULus
Connector Type Straight
Body Color - Cord Connector Silver
Insulated No
Hazardous Location Rating Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Strain Relief Type No External Strain Relief
Body Color Silver
Collar Material Iron
Resistance Properties Corrosion Resistant
Body Material Iron
NEMA Rating NEMA 4
Grommet Color Code Red
Liquid Tight Yes
Connection Orientation 90 Degrees
Thread Type NPT Thread
For Maximum Cable OD 0.25 in
For Minimum Cable OD 0.15 in
Environmental Rating Liquid Tight
Grommet Material Neoprene
Thread-Type NPT Thread
Application For use in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cable;RACO liquidtight strain relief cord connectors are suitable for use in Class I, Div. 2; Class II, Div. 1 & 2; and Class III, Div. 1 & 2 hazardous locations
Cable Range .15 - .25 in
Standard cULus Listed
Certified Listed cULus Listed
Features Malleable iron construction provides mechanical strength and durability; Neoprene grommets are color-coded by cable diameter allowing for quick and easy identification; Metallic components are zinc plated for corrosion protection; Unique grommet design is forced up and around the cord when the nut is tightened creating a liquidtight seal; Time saving and easy installation - no need to disassemble the fitting for cord installation; Additional colors and sizes available

Description

Enhanced Rating Cord Connector, Cord Dia. Range 0.15 in to 0.25 in, Box Connection 1/2 in MNPT, Material - Cord Connector Malleable Iron, External Strain Relief Material No External Strain Relief, Gland Color Code Red, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, Length - Box to End of Connector 1 1/4 in, Insulated No, Standards cULus
