  11. Cord Connector, Silver, 3-1/4" L, Iron
This item is Discontinued.

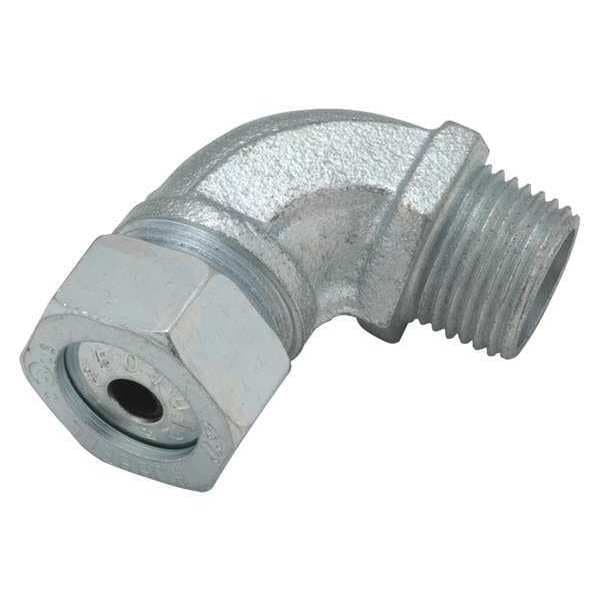

Raco Cord Connector, Silver, 3-1/4" L, Iron 3795-3

Cord Connector, Silver, 3-1/4" L, Iron (Discontinued)

  • Mfr # 3795-3
  • Zoro # G5490165
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3795-3
Zoro #
G5490165
UPC #
050169983324
Country of Origin
China

Dimensions

Hub Size
3/4 in MNPT
Length
3-1/4"
Cord Dia. Range
0.45 in to 0.56 in
Length - Box to End of Connector
1 7/16 in
Conduit Size
3/4"
Length - External Strain Relief
No External Strain Relief
Compatible Conduit Trade Size
3/4 in
Thread Size
3/4 in
Each - Width
1.440 in
Trade Size
0.75 in
Dimensions
3.25 in x 1.44 in x 1.44 in
Height
1.44 in
Width
1.440 in
Size
3.25 in x 1.44 in x 1.44 in

Details

Item
Enhanced Rating Cord Connector
Material
Iron
Color
Silver
Standards
cULus
Body Color - Cord Connector
Silver
Strain Relief Type
No External Strain Relief
Insulated
No
Number of Cords
1
Style - Connector
90 Degrees
Material - Cord Connector
Malleable Iron
Gland Color Code
Green
Connector Type
Straight
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Material - External Strain Relief
No External Strain Relief
Box Connection
3/4 in MNPT
Item - Cord Connector
Enhanced Rating Cord Connector
Body Material
Iron
Collar Material
Iron
For Minimum Cable OD
0.45 in
Grommet Material
Neoprene
Environmental Rating
Liquid Tight
For Maximum Cable OD
0.56 in
Connection Orientation
90 Degrees
Resistance Properties
Corrosion Resistant
Grommet Color Code
Green
Thread Type
NPT Thread
Body Color
Silver
NEMA Rating
NEMA 4
Liquid Tight
Yes
Cable Range
.45 - .56 in
Certified Listed
cULus Listed
Standard
cULus Listed
Application
For use in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cable;RACO liquidtight strain relief cord connectors are suitable for use in Class I, Div. 2; Class II, Div. 1 & 2; and Class III, Div. 1 & 2 hazardous locations
Features
Malleable iron construction provides mechanical strength and durability; Neoprene grommets are color-coded by cable diameter allowing for quick and easy identification; Metallic components are zinc plated for corrosion protection; Unique grommet design is forced up and around the cord when the nut is tightened creating a liquidtight seal; Time saving and easy installation - no need to disassemble the fitting for cord installation; Additional colors and sizes available

Description

Enhanced Rating Cord Connector, Cord Dia. Range 0.45 in to 0.56 in, Box Connection 3/4 in MNPT, Material - Cord Connector Malleable Iron, External Strain Relief Material No External Strain Relief, Gland Color Code Green, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, Length - Box to End of Connector 1 7/16 in, Insulated No, Standards cULus
