CAD

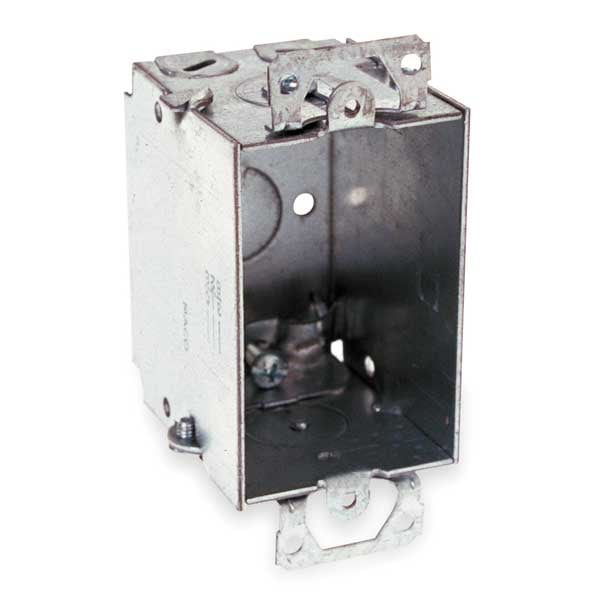

Electrical Box, 12.5 cu in, Switch Box Type, 1 Gang, Galvanized Zinc, Rectangular Shape
- Mfr # 519
- Zoro # G0281732
CAD Available
product price:
$
3.59
/ea
Key Features
CAD Drawing
Capacity
12.5 cu in
Box Type
Switch
Number of Gangs
1 Gang
Material
Galvanized Zinc
Overall Width
4 1/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 519
- Zoro #
- G0281732
- UPC #
- 050169005194
- Country of Origin
- Mexico
- Item
- Electrical Box
- Capacity
- 12.5 cu in
- Box Type
- Switch
- Number of Gangs
- 1 Gang
- Material
- Galvanized Zinc
- Box Shape
- Rectangular
- Color
- Gray
- Number of 1/2 In. Side Knockouts
- 0
- Number of 1/2 In. Back Knockouts
- 1
- Standards
- UL Listed
- Clamp Type
- KO Clamps, NMSC Clamps
- Features
- Knockouts
- 1/2 in
- Standard
- UL Listed
- Wiring System
- Nonmetallic Sheathed Cable
- Fire Resistance
- Yes
- Plaster Ears
- Yes
- Number of 1/2 in Side Knockouts
- 0
- For Construction Type
- Remodel
- Number of 1/2 in Back Knockouts
- 1
- CAD Available
- Yes
- Shell Material
- Steel
- Wire Color
- Gray
- Traction Material
- Steel
Dimensions
- Overall Width
- 4 1/4 in
- Overall Depth
- 2 1/2 in
- Conduit Size
- 1/2 in
- Nominal Depth
- 2-1/2"
- Nominal Width
- 2"
- Nominal Length
- 3"
- Height
- 2.27 in
- Box Depth
- 2 1/2 in
- Box Height
- 2 1/4 in
- Box Width
- 4 1/4 in
- Overall Height
- 2 1/4 in
Description
3 in. x 2 in. Switch Box, Gangable, 2-1/2 in. Deep, One 1/2 in. KO & NMSC Clamps, Plaster Ears
•3 in. x 2 in., 2-1/2 in. deep
•Gangable switch boxes offer the option of constructing a box to hold two or more devices
•L clamps provided for non-metallic sheathed cable (NMSC)
•Supplied with one 1/2 in. knockout
•Includes plaster ears for "cut-in" or "old work" applications
•12.5 cu. in. capacity
•Acceptable for use in 2-hour fire rated walls
•3 in. x 2 in., 2-1/2 in. deep
•Gangable switch boxes offer the option of constructing a box to hold two or more devices
•L clamps provided for non-metallic sheathed cable (NMSC)
•Supplied with one 1/2 in. knockout
•Includes plaster ears for "cut-in" or "old work" applications
•12.5 cu. in. capacity
•Acceptable for use in 2-hour fire rated walls
