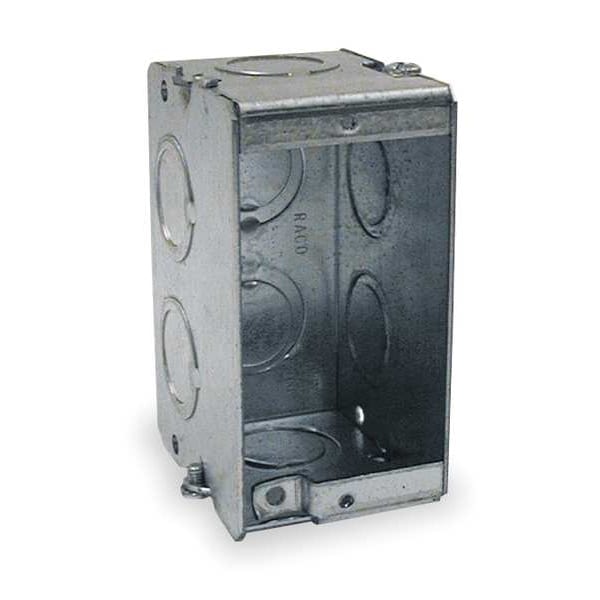

Raco Electrical Box, 15.5 cu in, Masonry Box Type, 1 Gang, Steel, Rectangular Shape 688 - main

Electrical Box, 15.5 cu in, Masonry Box Type, 1 Gang, Steel, Rectangular Shape

  • Mfr # 688

  • Zoro # G0652461

product price:  $9.25
/ea

Key Features

Capacity
15.5 cu in
Box Type
Masonry
Number of Gangs
1 Gang
Material
Steel
Overall Width
2 3/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
688
Zoro #
G0652461
UPC #
050169006887
Country of Origin
Canada

Dimensions

Overall Width
2 3/16 in
Overall Depth
2 1/2 in
Conduit Size
1/2 in, 3/4 in
Nominal Length
3-3/4"
Nominal Width
1-15/16"
Nominal Depth
2-1/2"
Height
3-7/8 in
Overall Height
3 7/8 in
Box Height
3 7/8 in
Box Width
2 3/16 in
Box Depth
2 1/2 in

Details

Item
Electrical Box
Capacity
15.5 cu in
Box Type
Masonry
Number of Gangs
1 Gang
Material
Steel
Box Shape
Rectangular
Color
Silver
Number of 1/2 In. Back Knockouts
2
Number of 3/4" Back Knockouts
2
Standards
UL Listed
Number of 3/4" Side Knockouts
6
Number of 1/2 In. Side Knockouts
6
Knockouts
1/2 in - 3/4 in Combination (TKO)
Features
Rugged welded design does not fall apart during construction.; Gangable design allows installer to build unlimited number of gangs to hold multiple devices.; Rectangular shape fits square cuts in block.; Standard 1/2" and 3/4" TKO® knockouts.; Device ears inside the box prevent mortar from getting in the device holes.; Steel voltage partition #675 fits 2-1/2" and #676 fits 3-1/2" depth.; Forward mounted grounding provision allows for easy installation of grounding pigtail.; Standard wall plates can be used.; Supplied with eight (8) 1/2 & 3/4 in. concentric knockouts; Gangable design allows construction of multiple gang box from one product; Ground is located near the front of the box for installer's convenience; 15.5 cu. in. capacity; For 4 in. block walls
Certified Listed
UL Listed
Standard
UL Listed
Wiring System
Conduit
Number of 1/2 in Back Knockouts
2
Number of 1/2 in Side Knockouts
6
For Box Application
Masonry
Number of 3/4 in Back Knockouts
2
Number of 3/4 in Side Knockouts
6

Description

Electrical Box, Box Type Masonry, Number of Gangs 1, Bracket Type Not Applicable, Capacity 15.5 cu in, Material Steel, Number of 1/2 In. Back Knockouts 2, Number of 1/2 In. Side Knockouts 6, Clamp Type -, Number of 3/4 In. Back Knockouts 2, Number of 3/4 In. Side Knockouts 6, Nominal Depth 2 1/2 in, Nominal Length 3 3/4 in, Nominal Width 1 15/16 in, Color Gray, Standards UL Listed
