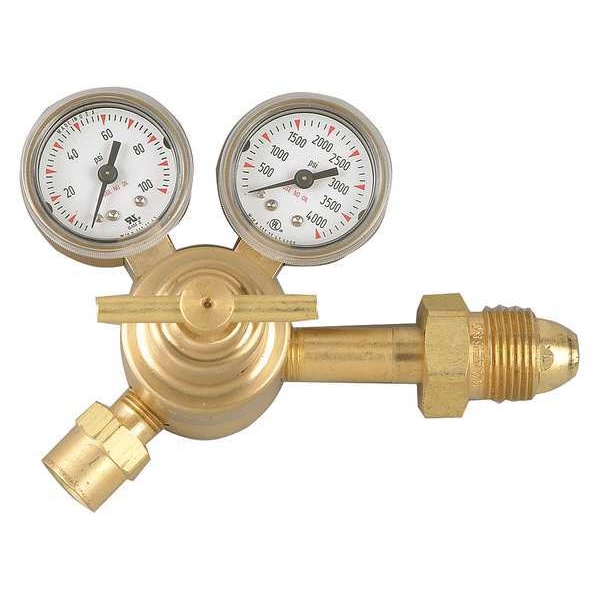

Purge Regulator, Nitrogen, Single Stage, 0.965"-14 Inlet, 5/8"-18 Outlet, 2 to 40 psi
Mfr # RAD64003043
Zoro # G8575244
product price:Â
$
236.99
/ea
Free Shipping & Returns
Key Features
Compatible Gas Type
Nitrogen
Outlet Connection Size
5/8"-18
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
40 psig
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- RAD64003043
- Zoro #
- G8575244
- UPC #
- 639890030431
- Country of Origin
- Mexico
- Item
- Purge Regulator
- Compatible Gas Type
- Nitrogen
- Body Material
- Brass
- Number of Stages
- Single Stage
- Outlet Pressure (Maximum)
- 40 psig
- Outlet Pressure (Minimum)
- 2 psig
- Regulator Supply Type
- Cylinder
- Diaphragm Material
- Neoprene
- Stages
- Single Stage
- Regulator Application
- General Purpose
- Delivery Pressure Range
- 2 to 40 psi
- Application
- General Purpose
- Duty Rating
- Medium/Standard Duty
- Features
- Internal Self Reseating Diaphragm Relief Valve, Lightweight, Compact Design for Low Pressure Testing and Purging, Sintered Inlet Filter, Stem-Type Seat Assembly
- CGA Number
- CGA 580
- Inlet Connection Type
- NGO
- Outlet Thread Direction
- Right Hand
- Inlet Thread Direction
- Right Hand
- Outlet Connection Type
- UNF
- Outlet Connection Gender
- Female
- Inlet Connection Gender
- Male
- Regulator Series
- SR5B-580
Description
Purge Regulator, Number of Stages Single Stage, Compatible Gas Type Nitrogen, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.965 In.-14, Outlet Pressure (Maximum) 40 psig, Outlet Connection Gender Female, Outlet Connection Size 5/8 In.-18, Outlet Connection Type UNF, Body Material Brass, Diaphragm Material Neoprene, CGA Number CGA 580, Application General Purpose, Duty Rating Medium/Standard Duty
