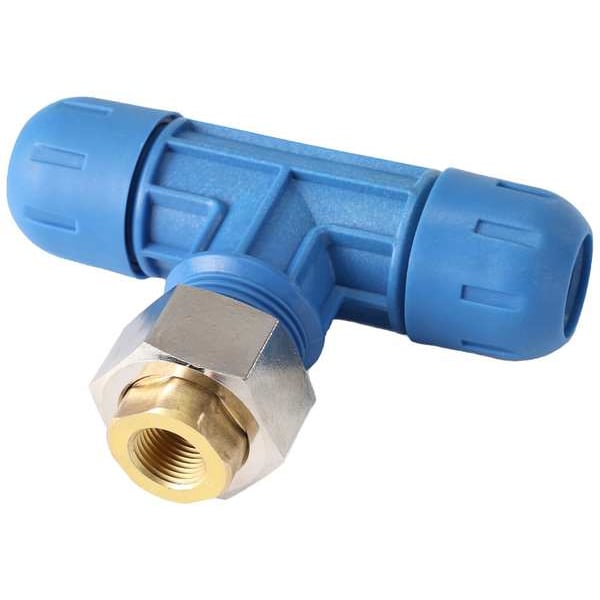

Tee, Nylon, Comp 20 mm, 20 mm, FNPT 1/2"

  • Mfr # F1009

  • Zoro # G703549100


product price: $38.75
/ea

Key Features

Application
Air
Standards
ASTM B221, ASTM B438
Fitting Shape
Tee
Hex Head Size
1 43/50 in
Hex Size
1 7/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F1009
Zoro #
G703549100
UPC #
094084610095
Country of Origin
China

Dimensions

Hex Head Size
1 43/50 in
Hex Size
1 7/8 in
Overall Length
5 1/2 in
Fitting Side B Tube Outer Diameter
20 mm
Compatible Tube Wall Thickness
0.06 in
Fitting Side A Tube Outer Diameter
20 mm
Fitting Side C Pipe Size
1/2 in
Thread Size C
1/2-14
Fitting Side 3 Pipe Size
1/2 in
Thread Size 3
1/2"-14
Fitting Side 2 Tube Outer Diameter
20 mm
Fitting Side 1 Tube Outer Diameter
20 mm

Details

Item
Compression Tee Fitting
Application
Air
Standards
ASTM B221, ASTM B438
Fitting Shape
Tee
Color
Blue
Maximum Operating Pressure
190 psi
Compatible Pipe Material
Brass, Copper, Iron, Stainless Steel
Resistance Properties
Corrosion-Resistant
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Side A Connection Type
Compression
Fitting Side B Connection Type
Compression
Compatible Tube Material
HDPE-AL-HDPE
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
0 Degrees F
Compatible Tube Hardness
25 Shore
Fitting Material
Nylon
Vacuum Rating
38 inHG
Fitting Side C Connection Type
FNPT
For Media Type
Compressed Air
Operating Temperature - Maximum
140 Degrees F
Fitting Side 2 Connection Type
Compression
Fitting Side 3 Connection Type
FNPT
Operating Temperature - Minimum
0 Degrees F
Connector Type
Reducer
Fitting Side 1 Connection Type
Compression
Operating Pressure - Maximum
190 psi

Description

The RAPIDAIR - F1009 belongs to the category of Push On Hose Fittings for use in various industrial and commercial applications. This component's role is to connect, control, or adapt the direction of air or fluid within a hose. The unit is manufactured with a focus on creating a connection that aims to minimize leakage, assisting in smooth operation in the required applications.

Key Features:

  • Constructed from durable material able to endure heavy-duty usage.
  • Designed for use with specific hose types for optimal compatibility and efficiency.
  • Commonly used in pneumatic (air) systems but also compatible with other specified applications.
  • Designed with the goal of providing a firm connection intending to lessen the chances of leakage and promote effective fluid/air transfer.
  • Installation and disassembly may be accomplished with a standard set of tools.
  • Built to function within specified ranges of temperatures and pressures which could be suited to various use conditions.
