  11. Heat Shrink Solder Connector, Single Wall, White, 0.65 in

This item is Discontinued.

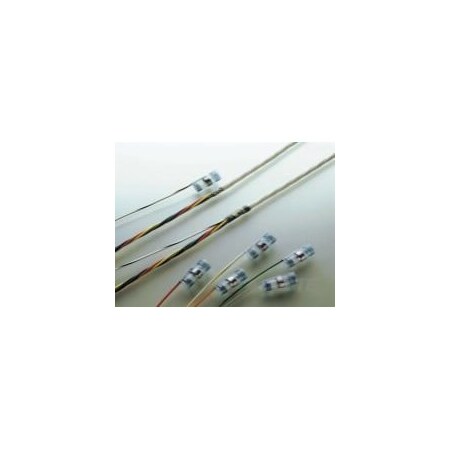

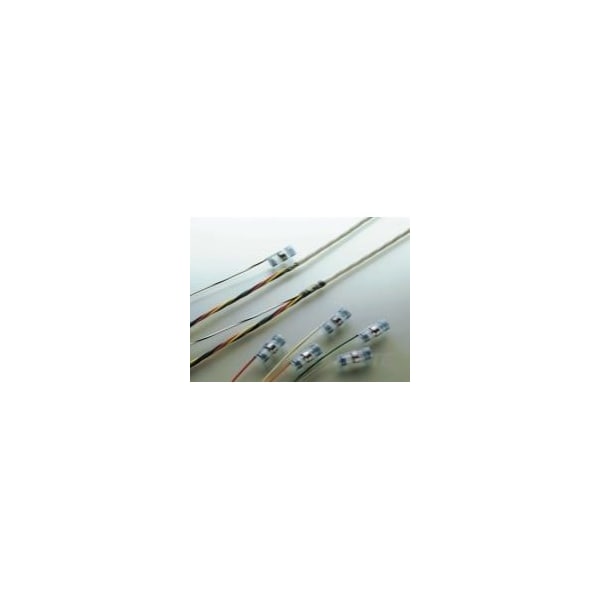

Raychem Heat Shrink Solder Connector, Single Wall, White, 0.65 in ST63-2-55-24-9

Heat Shrink Solder Connector, Single Wall, White, 0.65 in (Discontinued)

  • Mfr # ST63-2-55-24-9
  • Zoro # G105983168
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ST63-2-55-24-9
Zoro #
G105983168
UPC #
-
Country of Origin
Mexico

Dimensions

Length
0.65 in
Overall Length
0.65 in
Wire Insulation Diameter (Max)
2.65 mm[.105 in]
Use With Wire Size
24 AWG

Details

Item
Heat Shrink Solder Connector
Wall Type
Single Wall
Insulation Color
White
Shrink Tubing I.D. After Shrinking
0.055 in
Color
White
Temp. Range
-55° to 150° C
Shrink Tubing I.D. Before Shrinking
0.105 in
Terminal & Splice Type
Splice
Insulated
Yes
Sealable
Yes
Wire Range
24 AWG
Connection Material
Cross-Linked Modified Polyvinylidene Fluoride
